Removal and replacement procedures
Maintenance and Service Guide 4–37

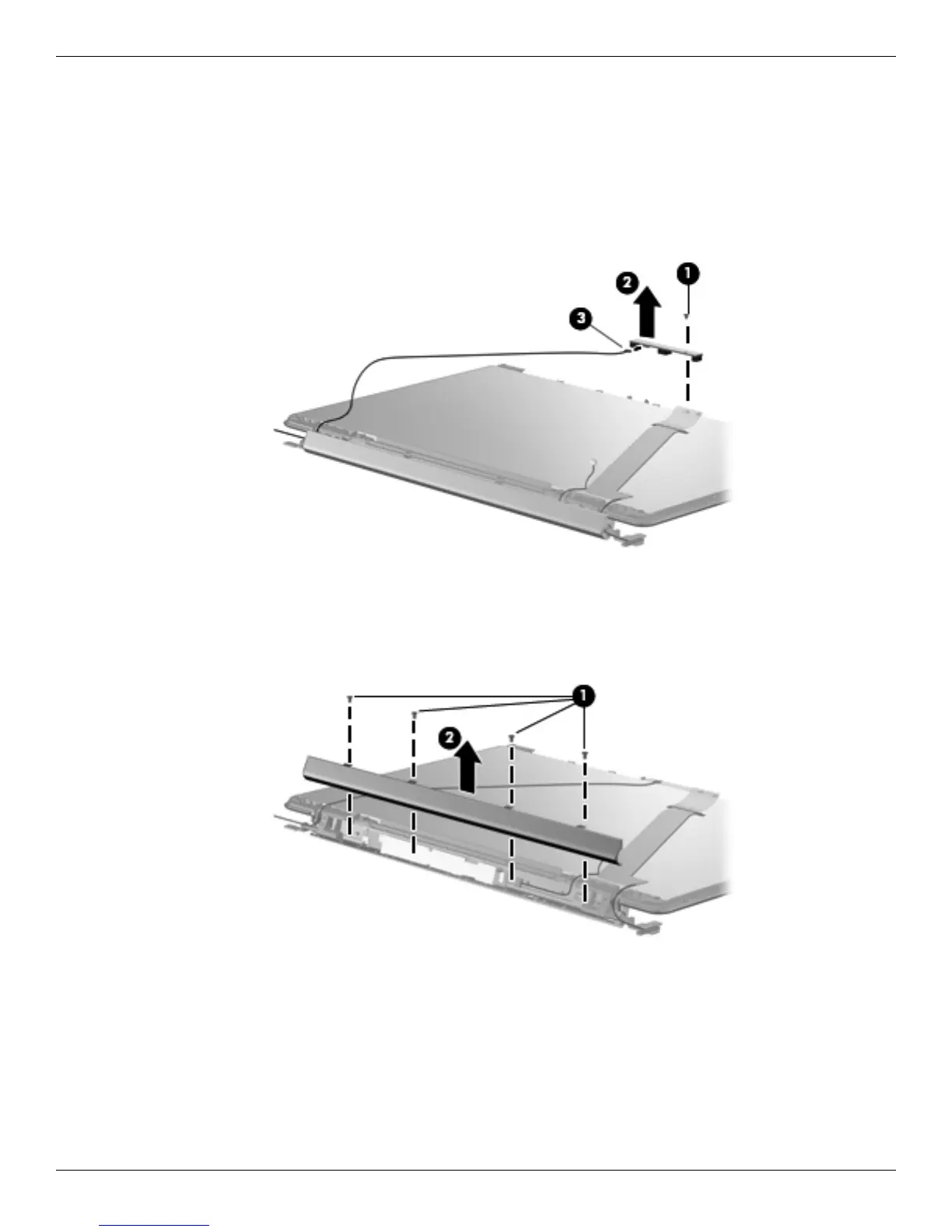

9. If it is necessary to replace the webcam/microphone module:
a. Remove the Phillips PM2.0×4.0 screw 1 that secures the module to the display bezel.
b. Release the webcam/microphone module 2 as far from the display bezel as the webcam/microphone
module cable allows.
c. Disconnect the webcam/microphone module cable 3 from the webcam/microphone module, and remove
the webcam/microphone module. The webcam/microphone module is available using spare part number
499242-001.
10. If it is necessary to replace the display hinge cover, display inverter, or webcam/microphone module cable:
a. Remove the four Phillips PM2.0×4.0 screws 1 that secure the display hinge cover to the display bezel.
b. Remove the display hinge cover 2 from the display bezel. The display hinge cover is available using spare
part number 577004-001.
