4–38 Maintenance and Service Guide
Removal and replacement procedures

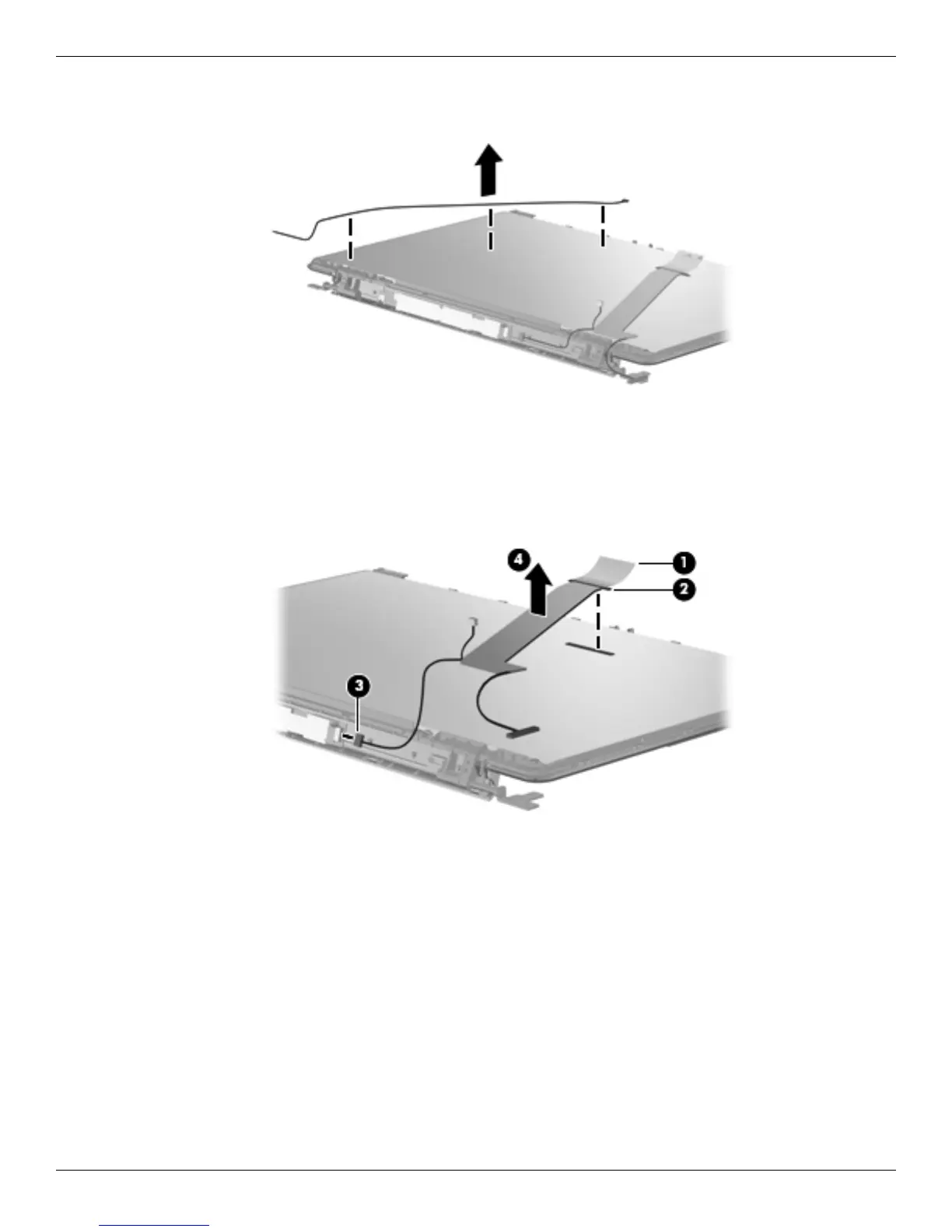

11. If it is necessary to replace the webcam/microphone module cable, remove the cable from the display panel.
The webcam/microphone module cable is included in the Display Cable Kit, spare part number 496876-001.
12. If it is necessary to replace the display panel cable:
a. Detach the adhesive reinforcement strip 1 that secures the display panel cable to the display panel.
b. Disconnect the display panel cable 2 from the display panel.
c. Disconnect the display panel cable from the display inverter 3, and remove the display panel cable 4.
The display panel cable is included in the Display Cable Kit, spare part number 496876-001.
