6.

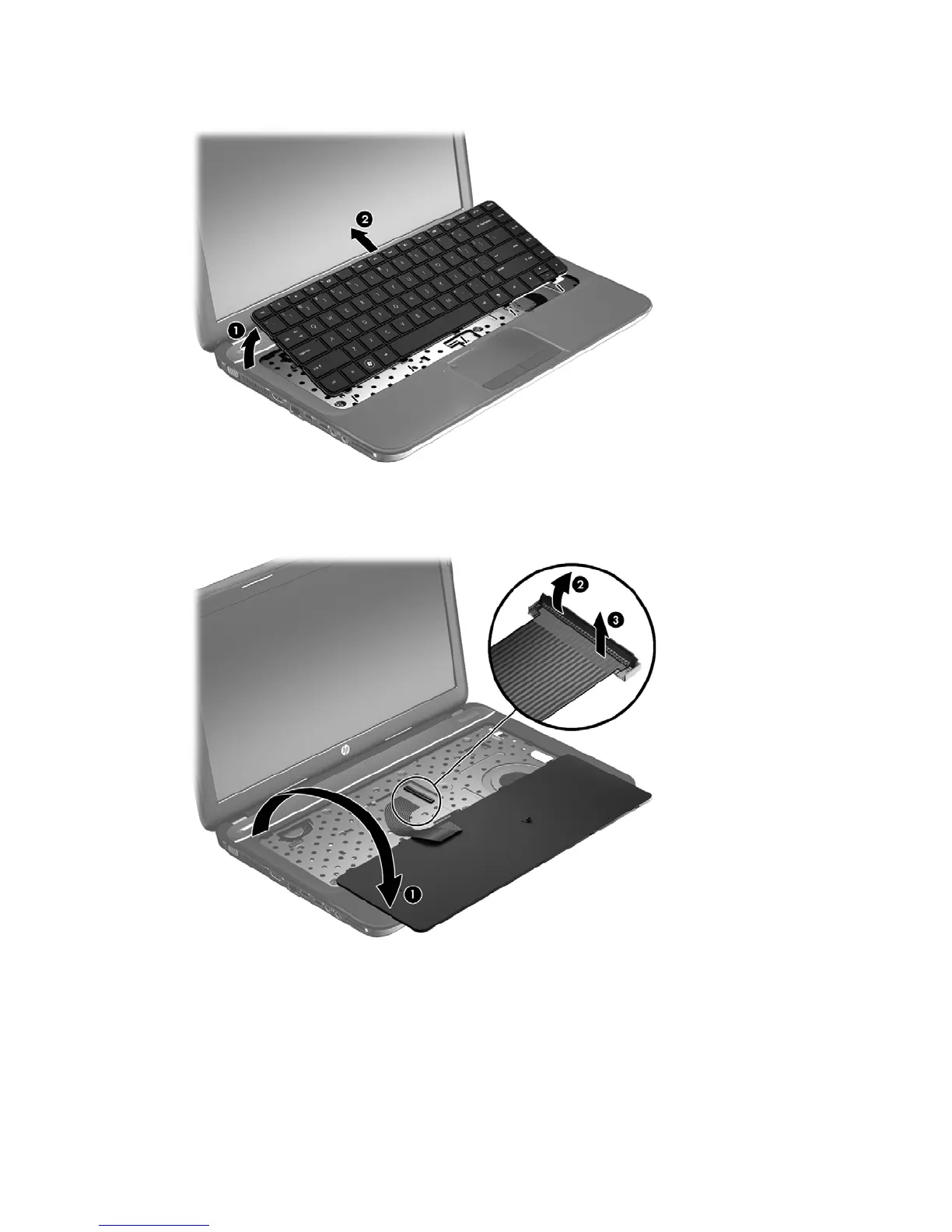

Lift the rear edge (1) of the keyboard, and then move the keyboard (2) toward the display panel.
7.
Tilt the keyboard forward (1) onto the palm rest. Release the zero insertion force (ZIF) connector
(2) to which the keyboard cable is attached, and then disconnect the keyboard cable (3) from
the system board.
8.
Remove the keyboard.
Reverse this procedure to install the keyboard.
52 Chapter 4 Removal and replacement procedures ENWW
