Remove the top cover:

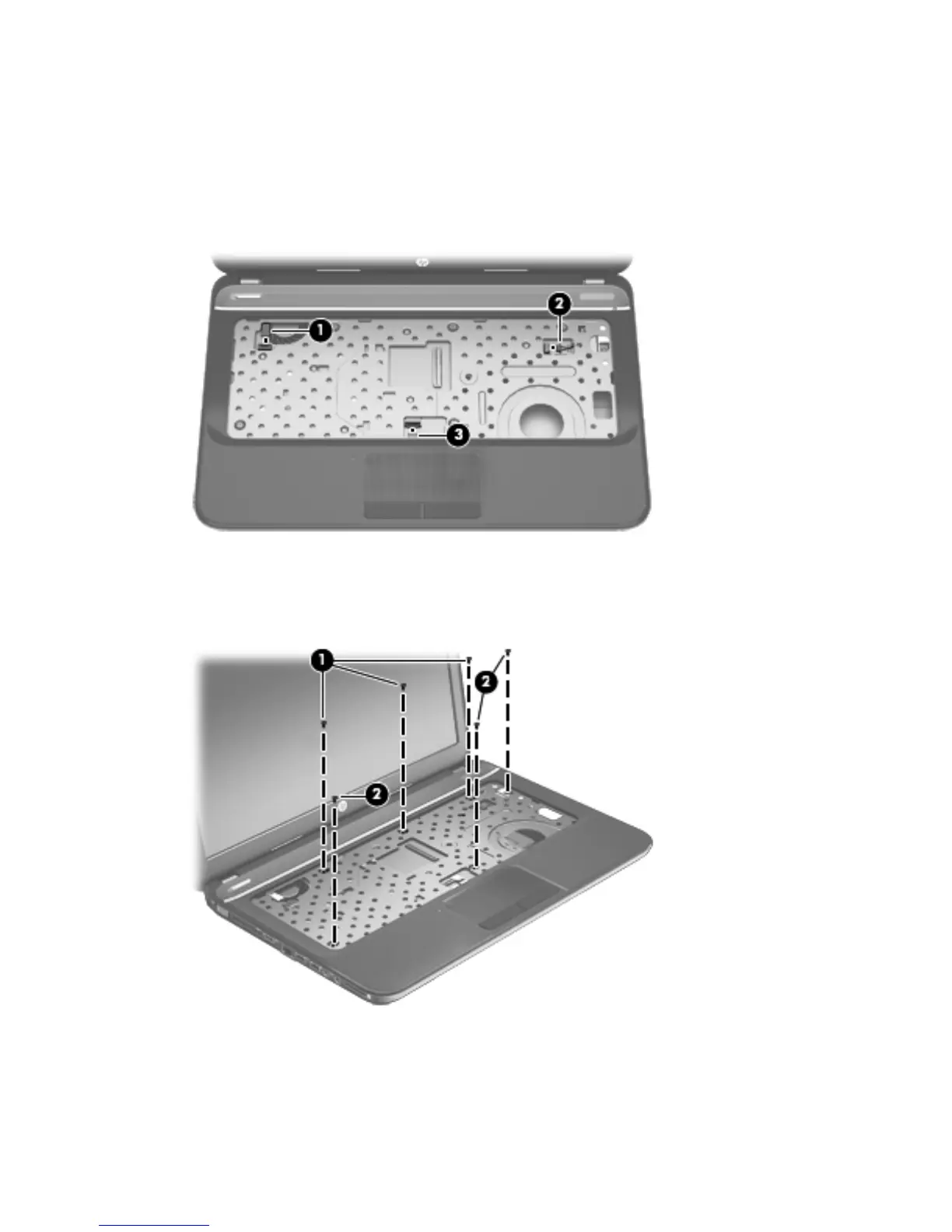

1. Disconnect these cables from the system board:
(1) Power button board ZIF cable
(2) Speaker cable
(3) TouchPad button board ZIF cable
2. Remove the following screws under the keyboard:
(1) Three Phillips M2.5 x 3.0
(2) Three Phillips M2.5 x 6.5
3.
Close the computer.
4. Turn the computer upside down, with the front toward you.
54 Chapter 4 Removal and replacement procedures ENWW
