5.

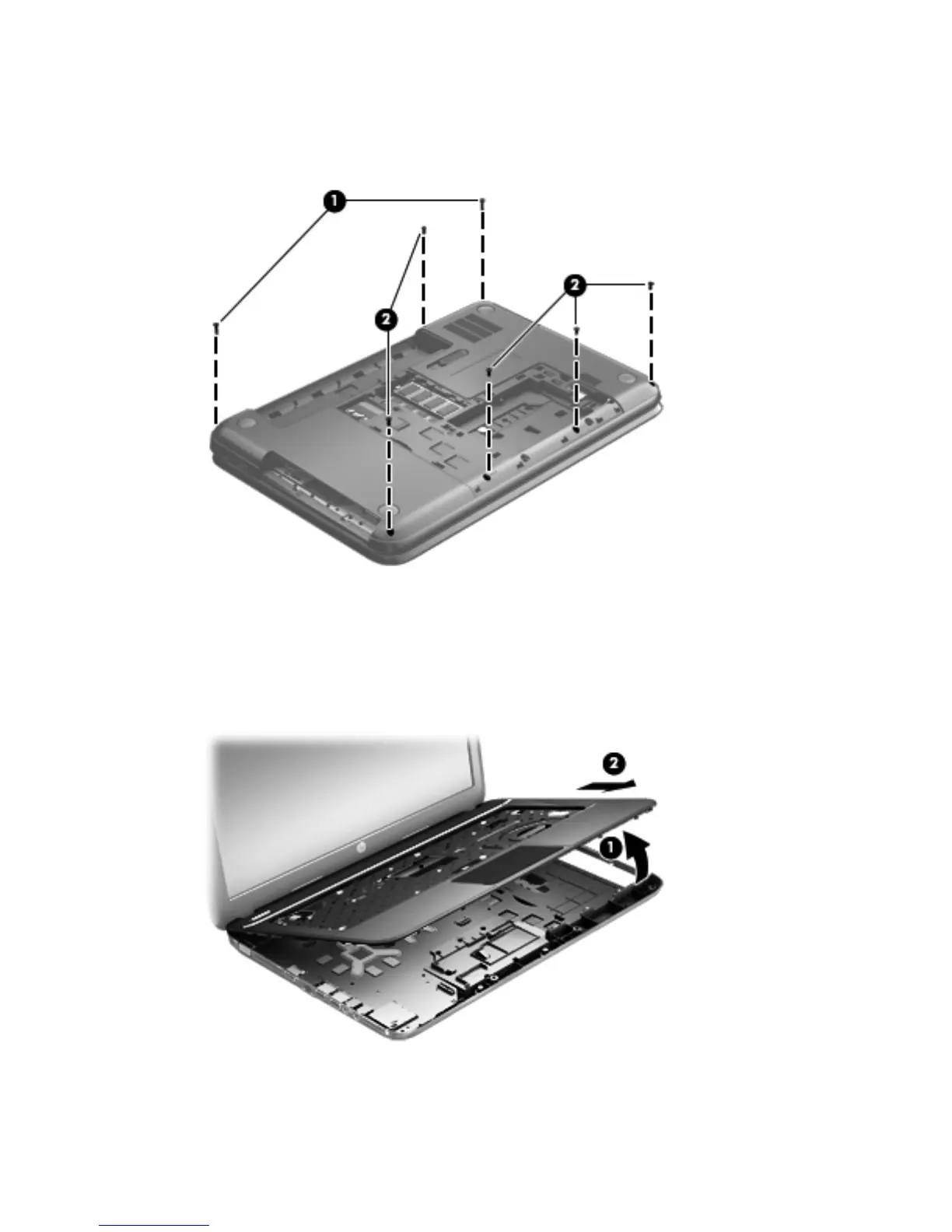

Remove the following screws that secure the top cover to the computer:
(1) Two Phillips M2.5 x 7.5
(2) Five Phillips M2.5 x 6.5
6. Turn the computer right-side up, with the front toward you.
7. Open the computer.
8.
Lift the front edge of the top cover (1) until the left and right sides disengage from
the base enclosure.
9. Remove the top cover (2).
Reverse this procedure to install the top cover.
ENWW
Component replacement procedures
55
