5.

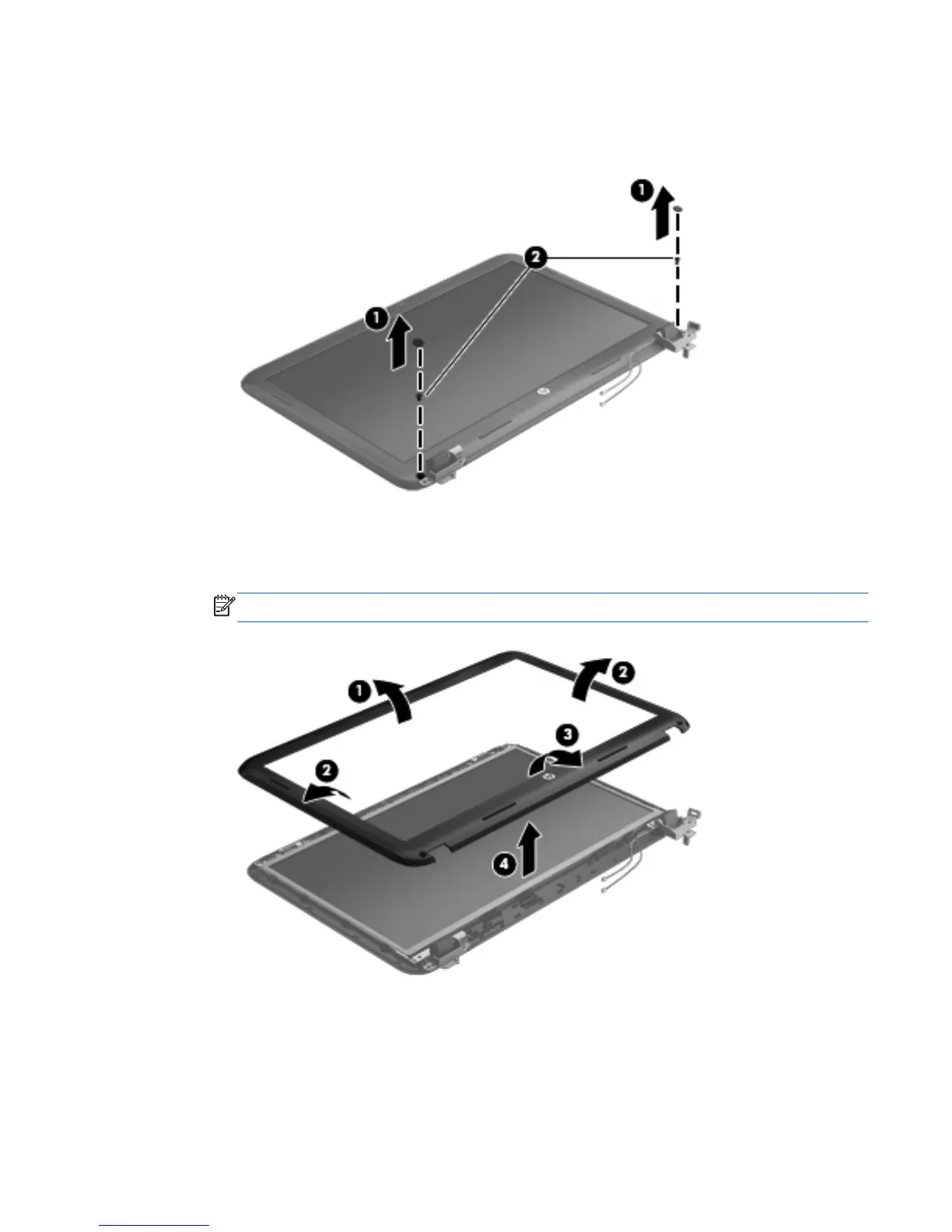

If it is necessary to replace the display bezel or any of the display assembly subcomponents:
a. Remove the plastic screw covers (1) and the two Phillips M2.5 × 3.5 screws (2) that secure
the display bezel to the display assembly.
b. Flex the inside edges of the top edge (1), the left and right sides (2), and the bottom
edge (3) of the display bezel until the bezel disengages from the display enclosure.
c. Remove the display bezel (4).
NOTE: The black display bezel is available using spare part number 680545-001.
6. If it is necessary to replace the webcam/microphone module:
a.
Detach and release the webcam/microphone module (1) as far as the webcam/microphone
module cable allows. (The webcam/microphone module is attached to the display enclosure
with double-sided tape.)
ENWW
Component replacement procedures
65
