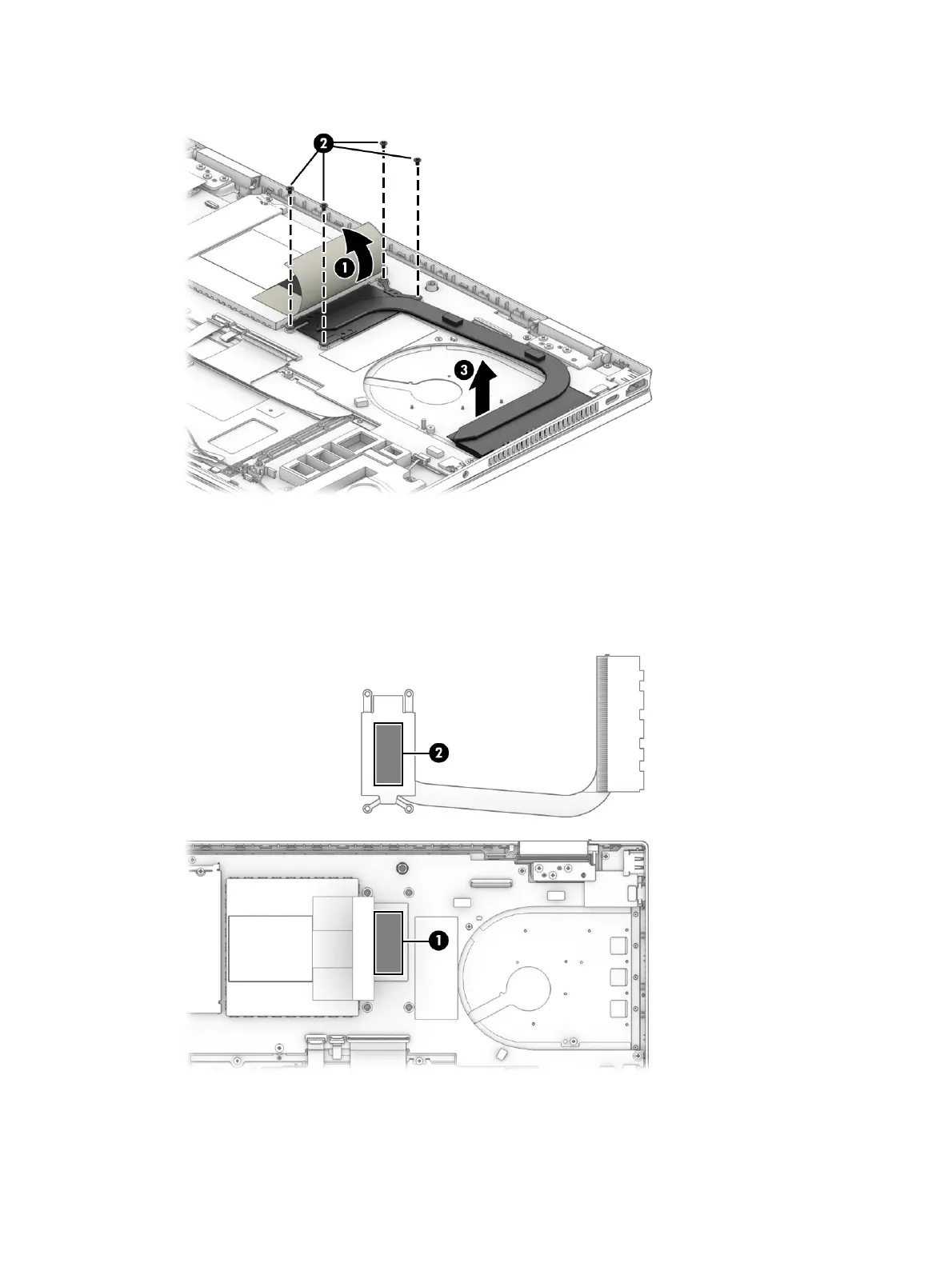

3. Remove the heat sink from the computer (3).
4. Thoroughly clean the thermal material from the surfaces of the heat sink and the system board
components each time the heat sink is removed. Replacement thermal material is included with the
heat sink and system board spare part kits. The following illustration shows the replacement thermal
material locations.
Thermal paste is used on the system board component (1) and on the heat sink area (2) that services it.
Reverse this procedure to install the heat sink.
42
Chapter 5Removal and replacement procedures for authorized service provider parts
