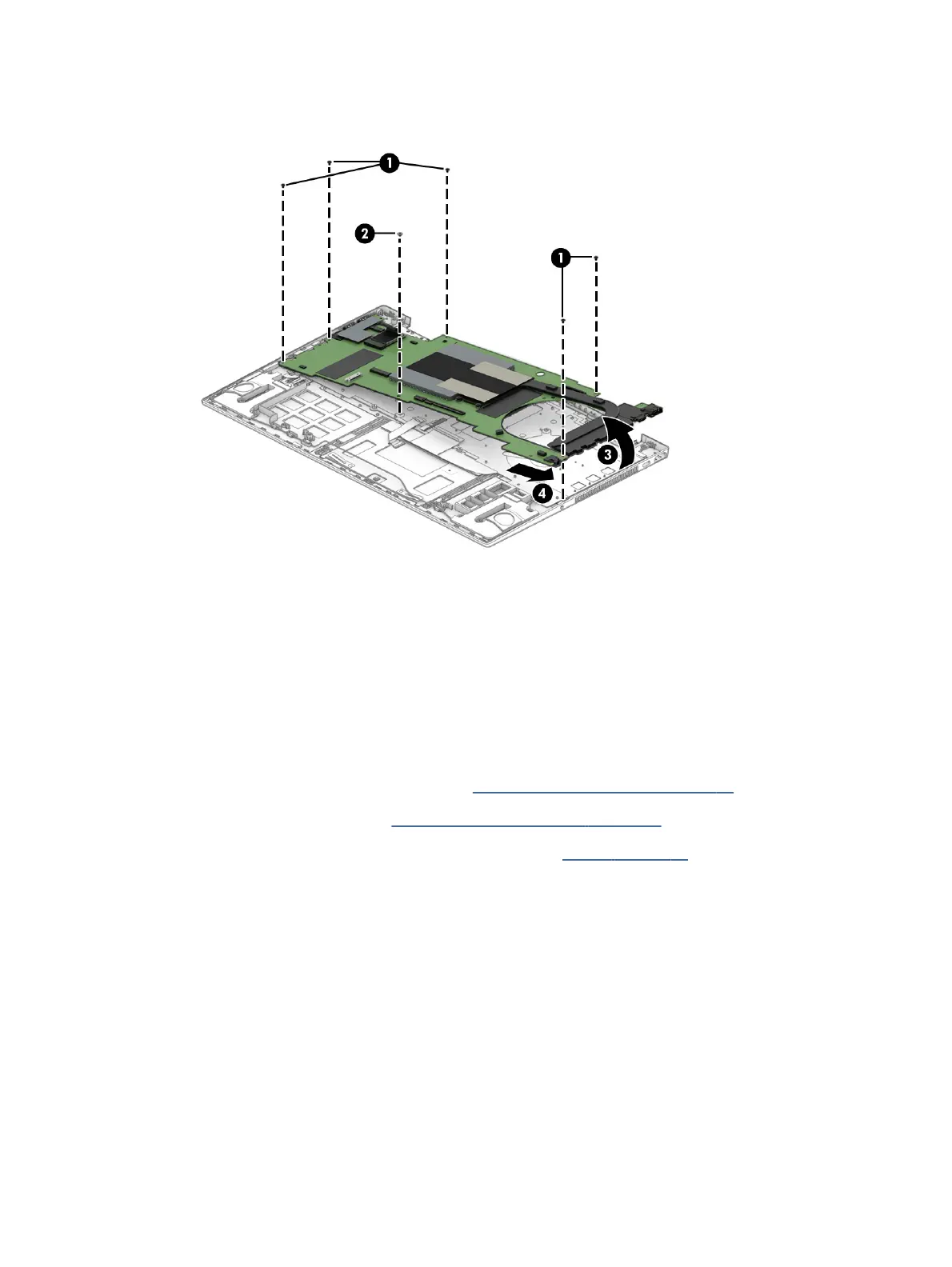

3. Lift the side of the system board upward (3), and then pull the system board away from the connectors
on the side of the computer to remove it (4).
Reverse this procedure to install the system board.
Display assembly
To remove and disassemble the display assembly, use these procedures and illustrations.
Full hinge-up displays are not available as spare parts. Spare parts for displays are available only at the
subcomponent level.
Before removing thedisplay panel, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 29).
2. Remove the bottom cover (see Bottom cover and rubber feet on page 29).
3. Disconnect the battery cable from the system board (see Battery on page 31).
Remove the display assembly:
1. Disconnect the antenna cables from the WLAN module (1) .
2. Remove the tape from the camera connector on the system board (2).
Display assembly
