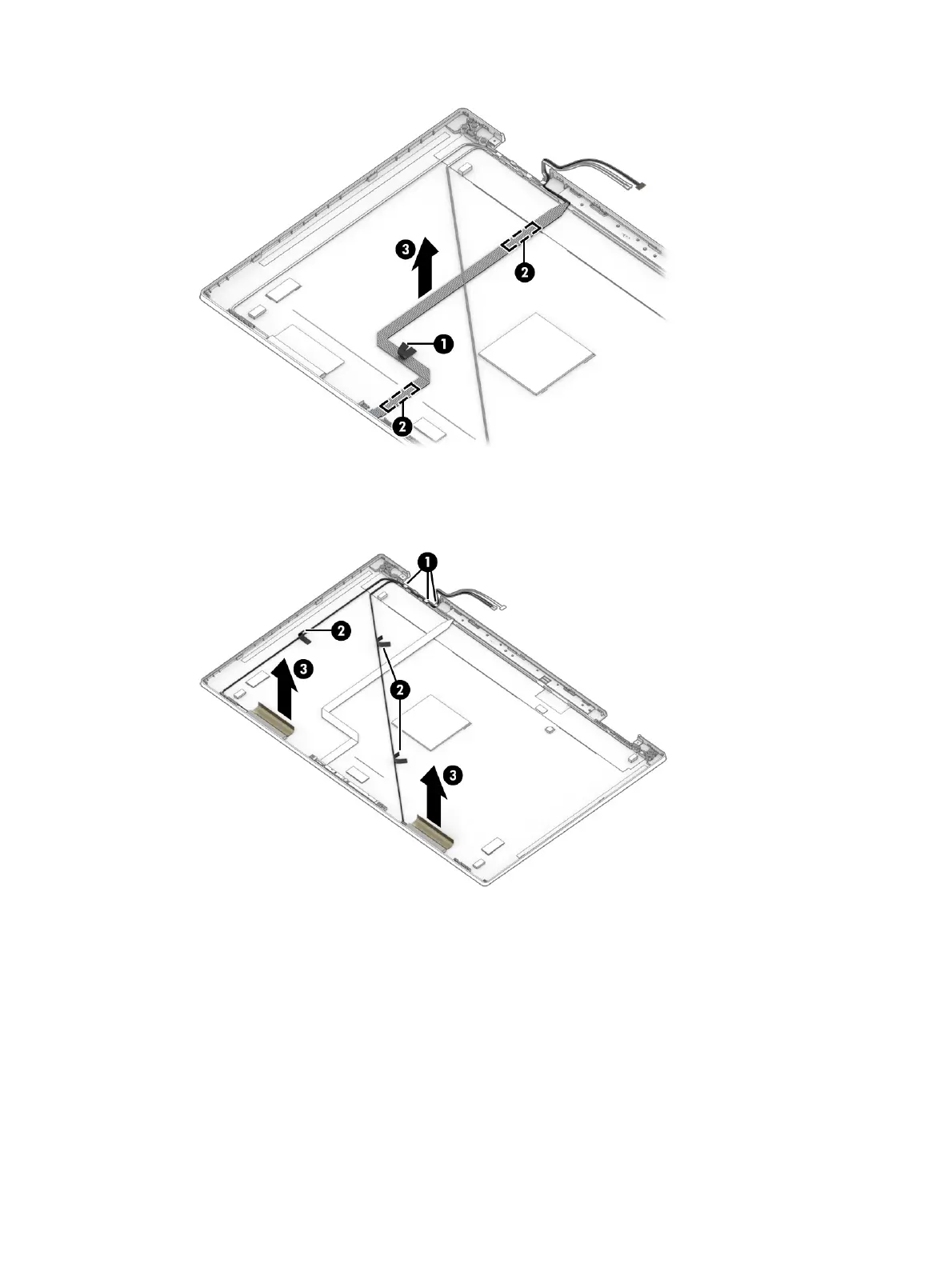

14. If you need to remove the WLAN antenna cables, remove the cables from the clips at the bottom of the
cover (1), remove the tape from the cables (2), and then peel the antennas o the inside of the display
back cover (3). The wireless antennas and cables are available as spare part number M45106-001.
Display back covers are available as the following spare parts:
M45107-001: HD models
M45108-001: FHD models
Reverse this procedure to reassemble and replace the display assembly.
Top cover with keyboard
The top cover with keyboard remains after removing all other spare parts from the computer. In this section,
the rst table provides the main spare part number for the top cover/keyboards. The second table provides
the country codes.
Top cover with keyboard
