System Board Drive Connections
Refer to the following illustration and table to identify the system board drive connectors.

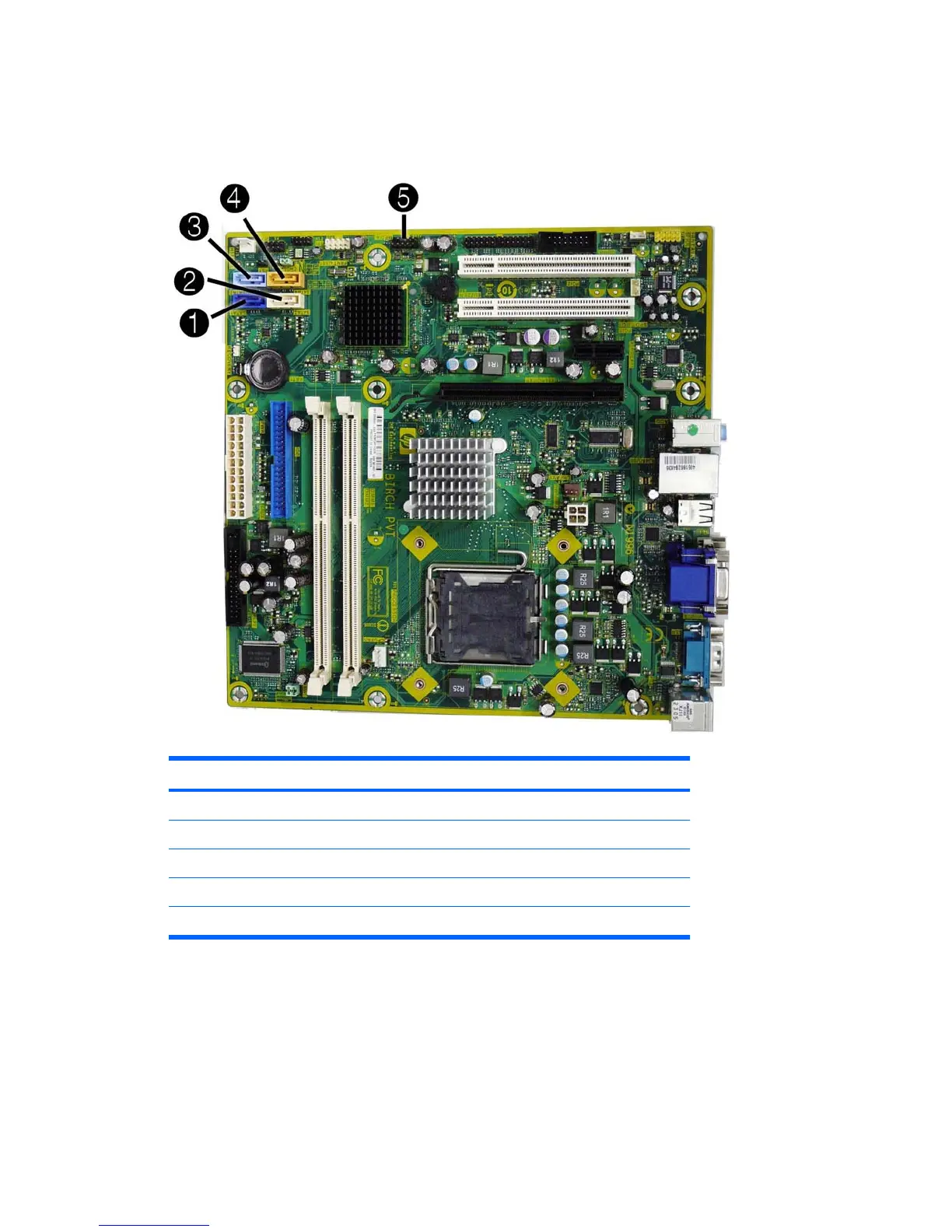

Figure 6-15 System Board Drive Connections
Table 6-3 System Board Drive Connections
No. System Board Connector System Board Label Color
1 SATA1 SATA1 dark blue
2 SATA2 SATA2 white
3 SATA3 SATA3 light blue
4 SATA4 SATA4 orange
5 Media Card Reader MEDIA black
Drives 41
