7. Disconnect the power cable and data cable from the rear of the optical drive.

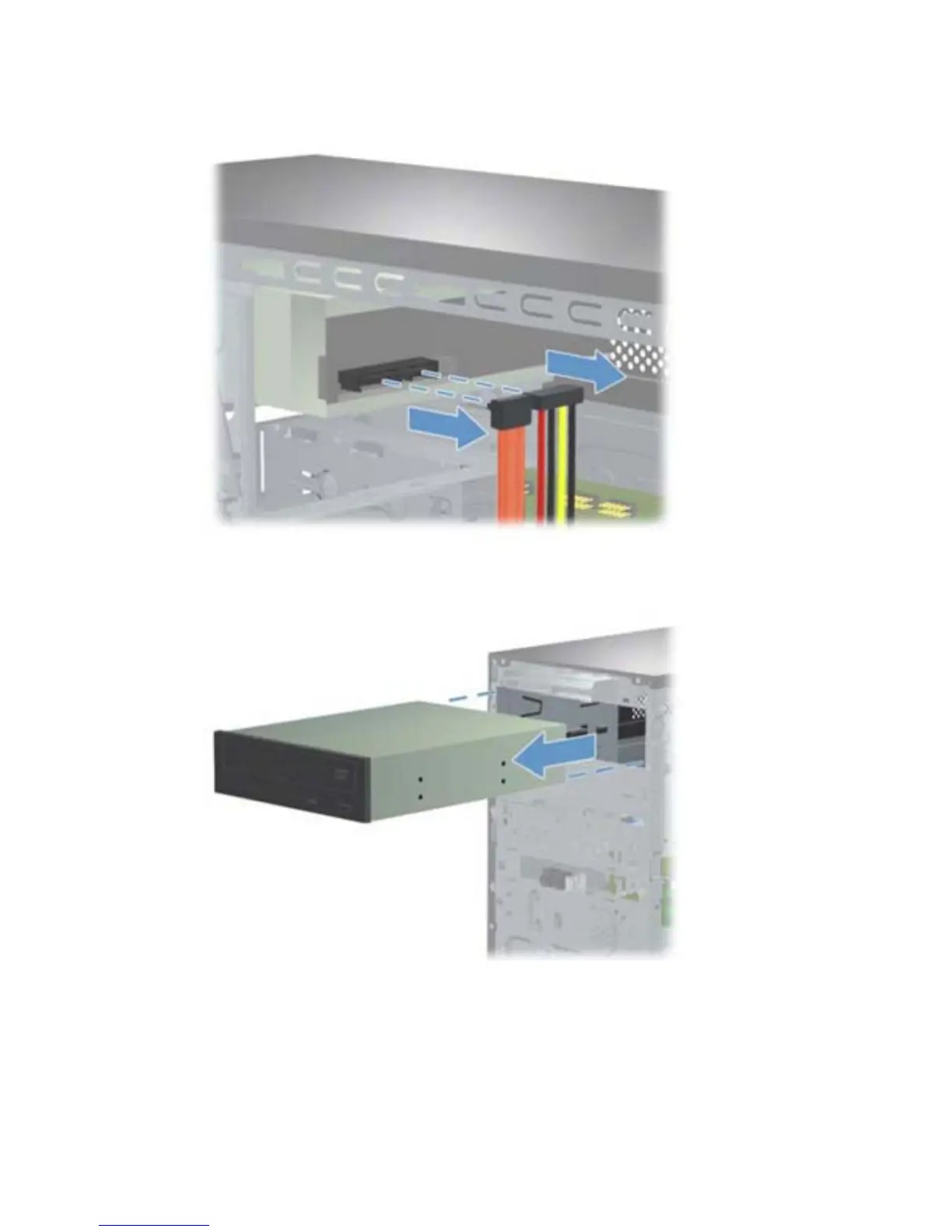

Figure 7-26 Disconnecting the power and data cables
8. Slide the drive out of the computer.
Figure 7-27 Removing the drive
To install an optical drive, reverse the removal procedures.
When installing an optical drive, slide the drive back until the hole on the drive aligns with the
alignment hole on the computer.
Drives 75
