Rear-facing webcam
Description Spare part number
5.0-MP, HD rear-facing webcam with auto-focus (includes cable) 802825-001
Before removing the rear-facing webcam, follow these steps:
1. Turn o the tablet. If you are unsure whether the tablet is o or in Hibernation, turn the tablet on, and
then shut it down through the operating system.
2. Disconnect the power from the tablet by unplugging the power cord from the tablet.
3. Disconnect all external devices from the tablet.
4. Remove the back cover (see Back cover on page 23).
5. Disconnect the battery cable from the system board (see Battery on page 24).

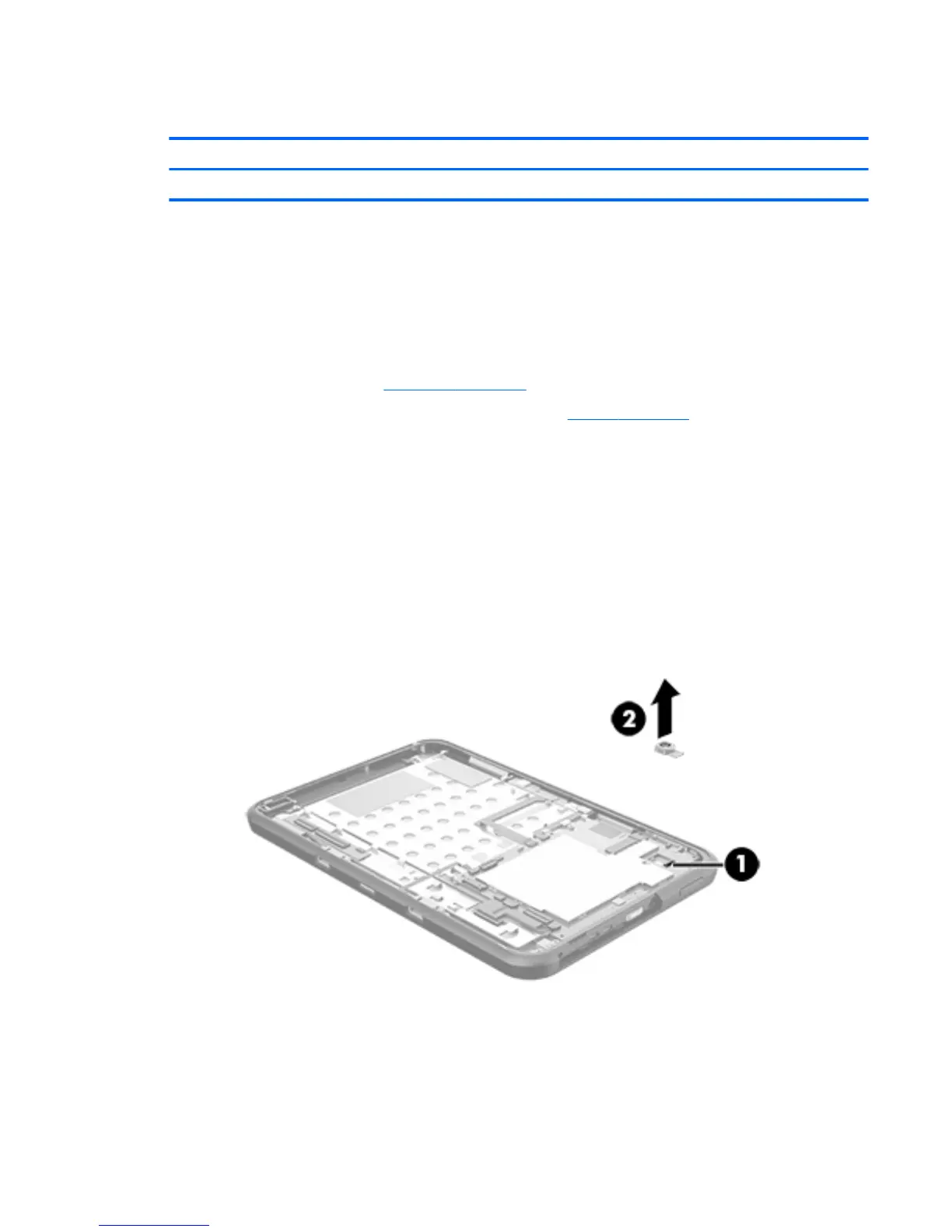

Remove the rear-facing webcam:
1. Release the zero insertion force (ZIF) connector (1) to which the rear-facing webcam cable is attached,
and then disconnect the rear-facing webcam cable from the system board.
2. Release the rear-facing webcam (2) from the molding built into the display panel assembly.
3. Remove the rear-facing webcam and cable.
Reverse this procedure to install the rear-facing webcam.
Rear-facing webcam 27
