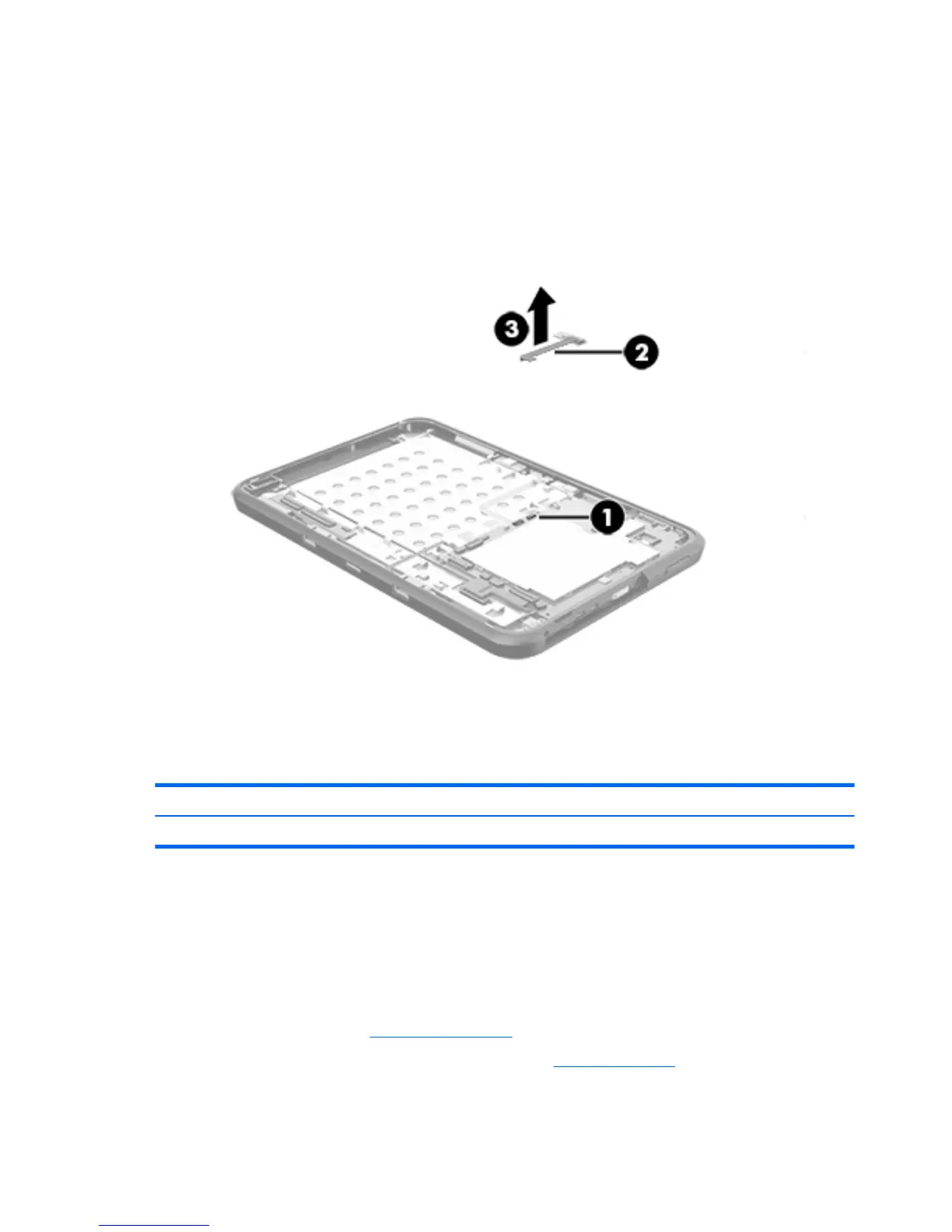

1. Release the ZIF connector (1) to which the front-facing webcam cable is attached, and then disconnect
the front-facing webcam cable from the system board.
2. Remove the Phillips PM2.0×4.1 screw (2) that secures the front-facing webcam to the display
panel assembly.
3. Remove the front-facing webcam (3).
Reverse this procedure to install the front-facing webcam.
Transfer board
Description Spare part number
Transfer (includes cable and double-sided adhesive) 802848-001
Before removing the transfer board, follow these steps:
1. Turn o the tablet. If you are unsure whether the tablet is o or in Hibernation, turn the tablet on, and
then shut it down through the operating system.
2. Disconnect the power from the tablet by unplugging the power cord from the tablet.
3. Disconnect all external devices from the tablet.
4. Remove the back cover (see Back cover on page 23).
5. Disconnect the battery cable from the system board (see Battery on page 24).
Remove the transfer board:
36 Chapter 5 Removal and replacement procedures
