10. Remove the vibration motor board (see Vibration motor board on page 26).
11. Remove the front-facing webcamera (see Front-facing webcamera on page 27).
12. Remove the rear-facing webcamera (see Rear-facing webcamera on page 28).
13. Remove the system board (see System board on page 30).
14. Remove the right speaker (see Right speaker on page 35).
15. Remove the battery and middle plate (see Battery and middle plate on page 36).
Remove the outer ring:

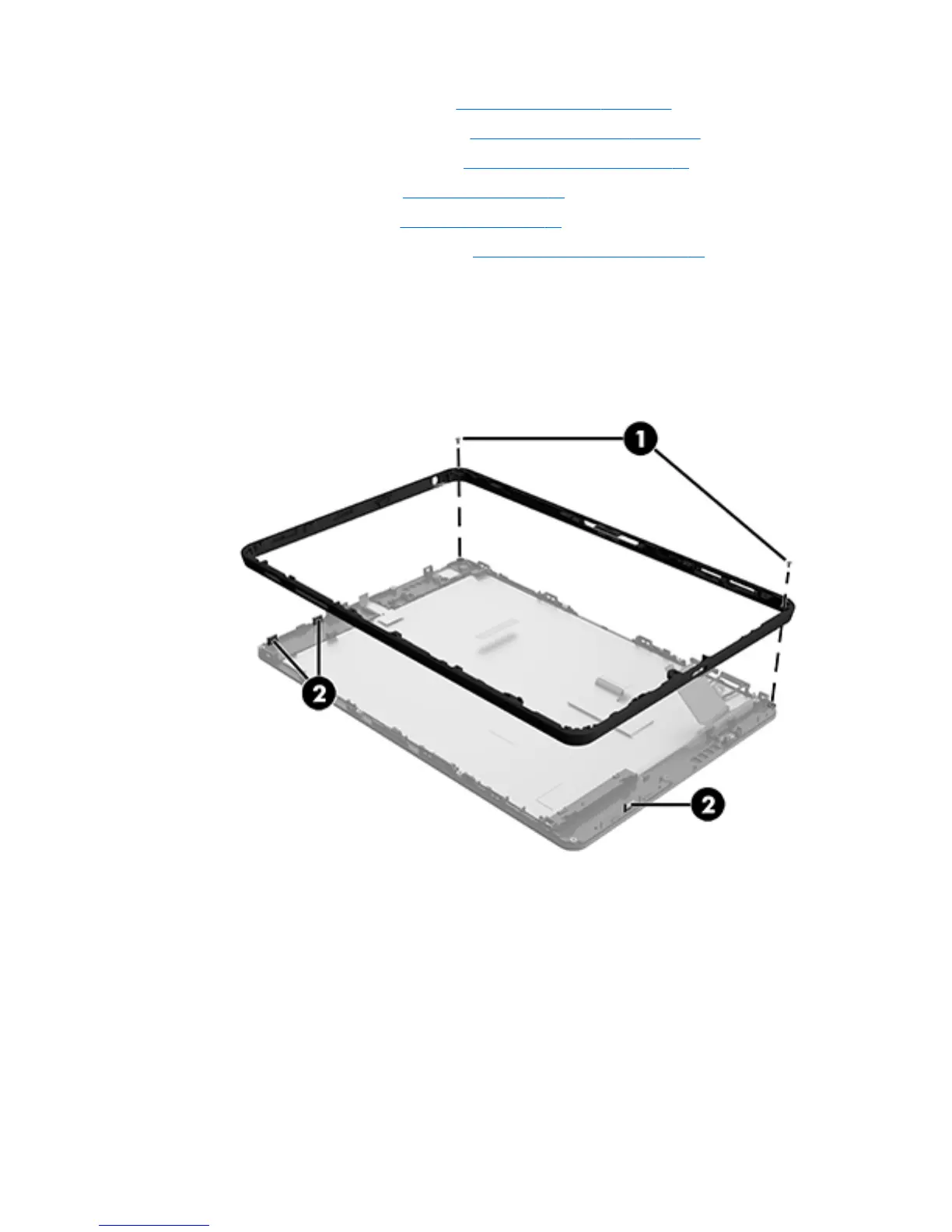

1. Remove the power and volume buttons from the ring, and then remove the two 2 mm P0 Phillips screws
(1) that secure the outer ring to the display panel assembly.
2. Disconnect the outer ring from the clips (2) on the frame, and then lift the outer ring from the display
assembly.
Reverse this procedure to install the outer ring.
