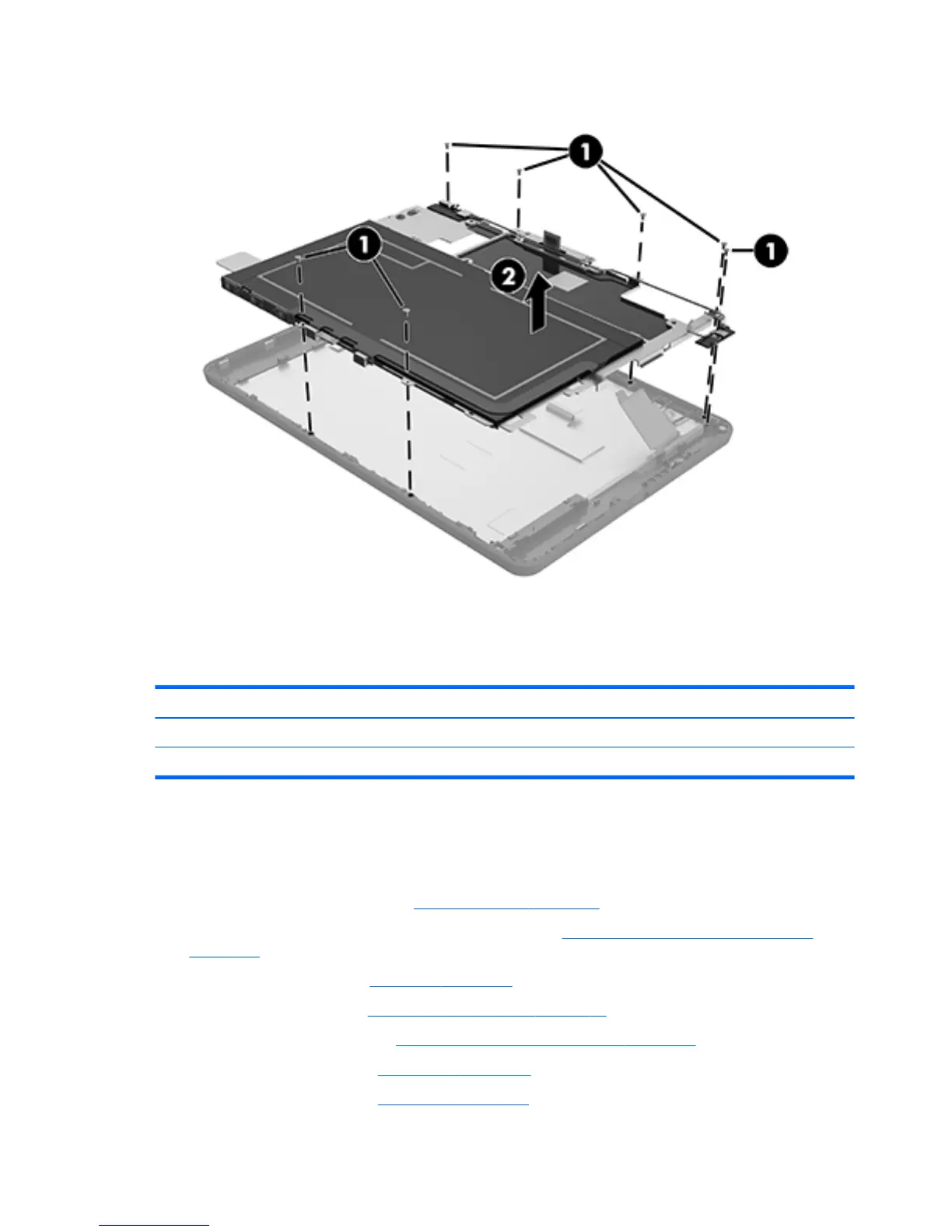

3. Lift and remove the battery and middle plate (2).
Reverse this procedure to install the battery and middle plate.
Outer ring
Description Spare part number
Outer ring for models with WWAN capability 823038-001
Outer ring for models without WWAN capability 823037-001
1. Turn o the tablet. If you are unsure whether the tablet is o, turn the tablet on, and then shut it down
through the operating system.
2. Disconnect all external devices from the tablet.
3. Remove the MicroSD card tray (see MicroSD card tray on page 17).
4. Remove the Nano SIM card tray (select products only) (see Nano SIM card tray (select models only)
on page 18.
5. Remove the back cover (see Back cover on page 18).
6. Disconnect the battery (see Disconnecting the battery on page 19).
7. Remove the WWAN module (see WWAN module (select models only) on page 21).
8. Remove the left speaker (see Left speaker on page 23).
9. Remove the audio board (see Audio board on page 24).
38 Chapter 5 Removal and replacement procedures
