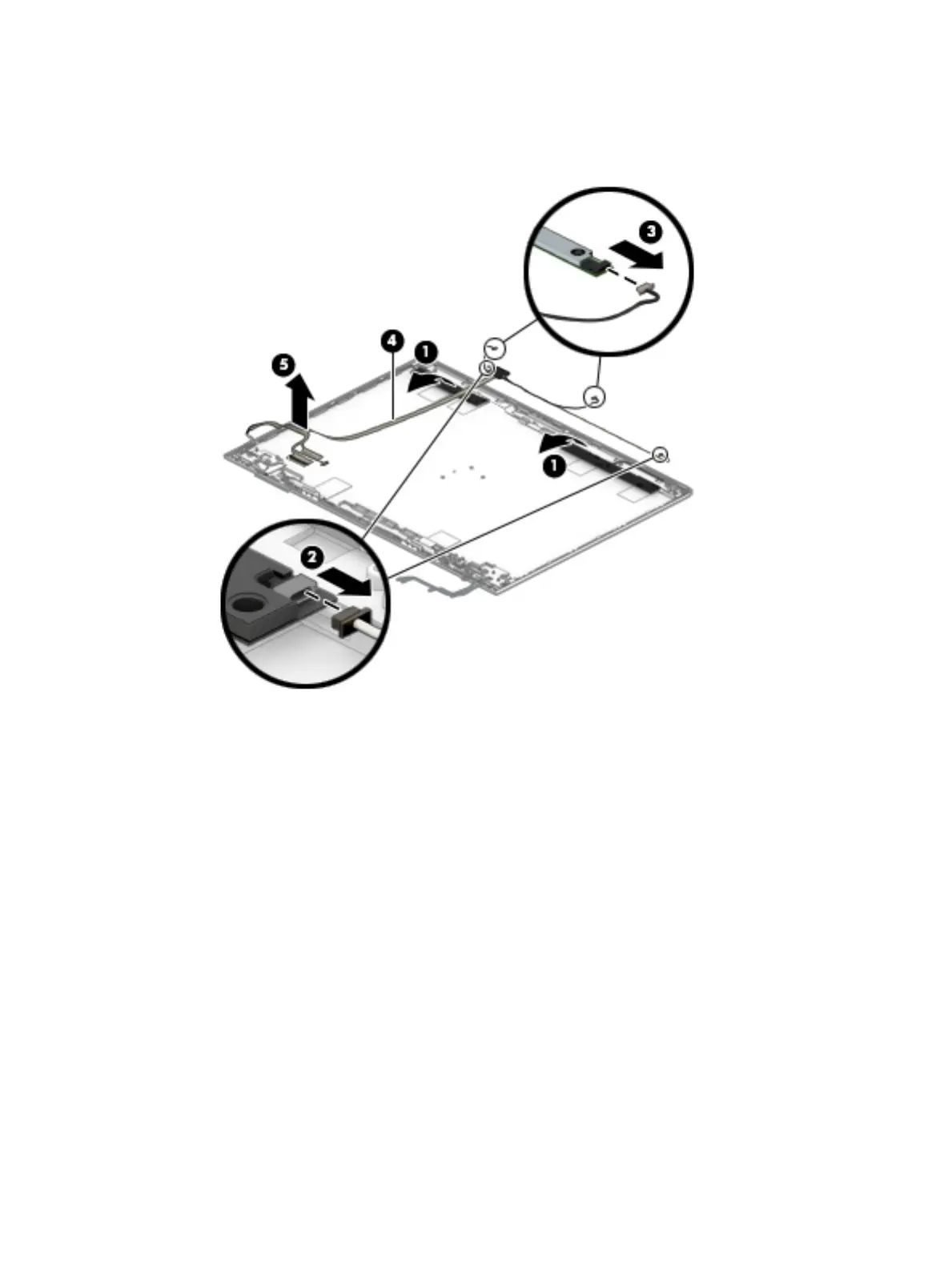

c. Pull the cable up to disengage it from the adhesive that secures it to the inside of the enclosure (4),
and then remove the cable from the enclosure (5).
The touch display cable is available as spare part number L78089-001.
Nontouch displays
a. Disconnect the cable from the ZIF connector on the camera module (1).
72 Chapter 5 Removal and replacement procedures for authorized service provider parts
