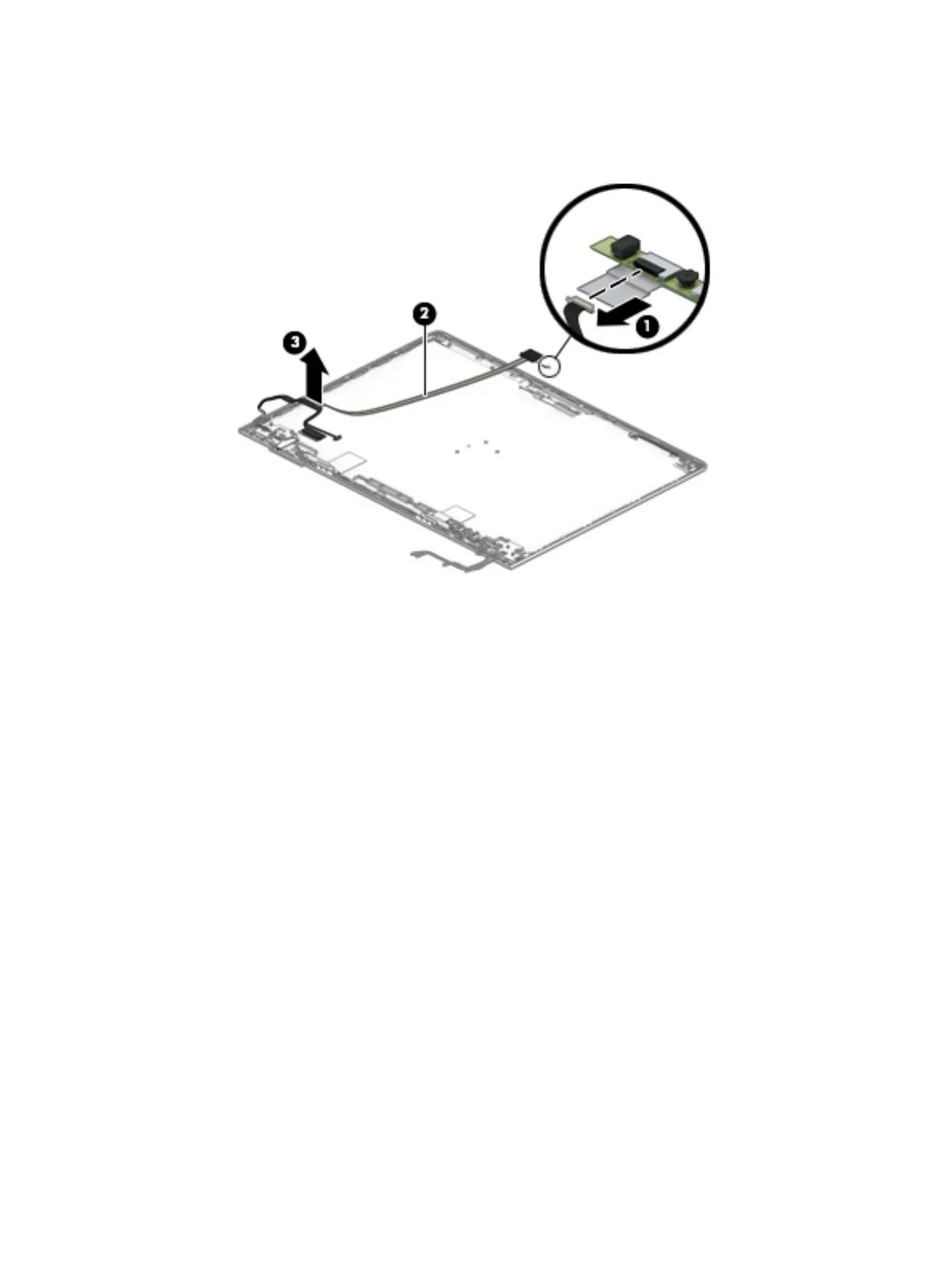

b. Pull the cable up to disengage it from the adhesive that secures it to the inside of the enclosure (2),
and then remove the cable from the enclosure (3).
The nontouch display cable is available as spare part number L78088-001.
Reverse this procedure to reassemble the display assembly.
Component replacement procedures 73
