11. Remove the display bezel.
The spare part number for the display bezel for webcam use is 683641-001.
The spare part number for the display bezel without webcam is 683642-001.

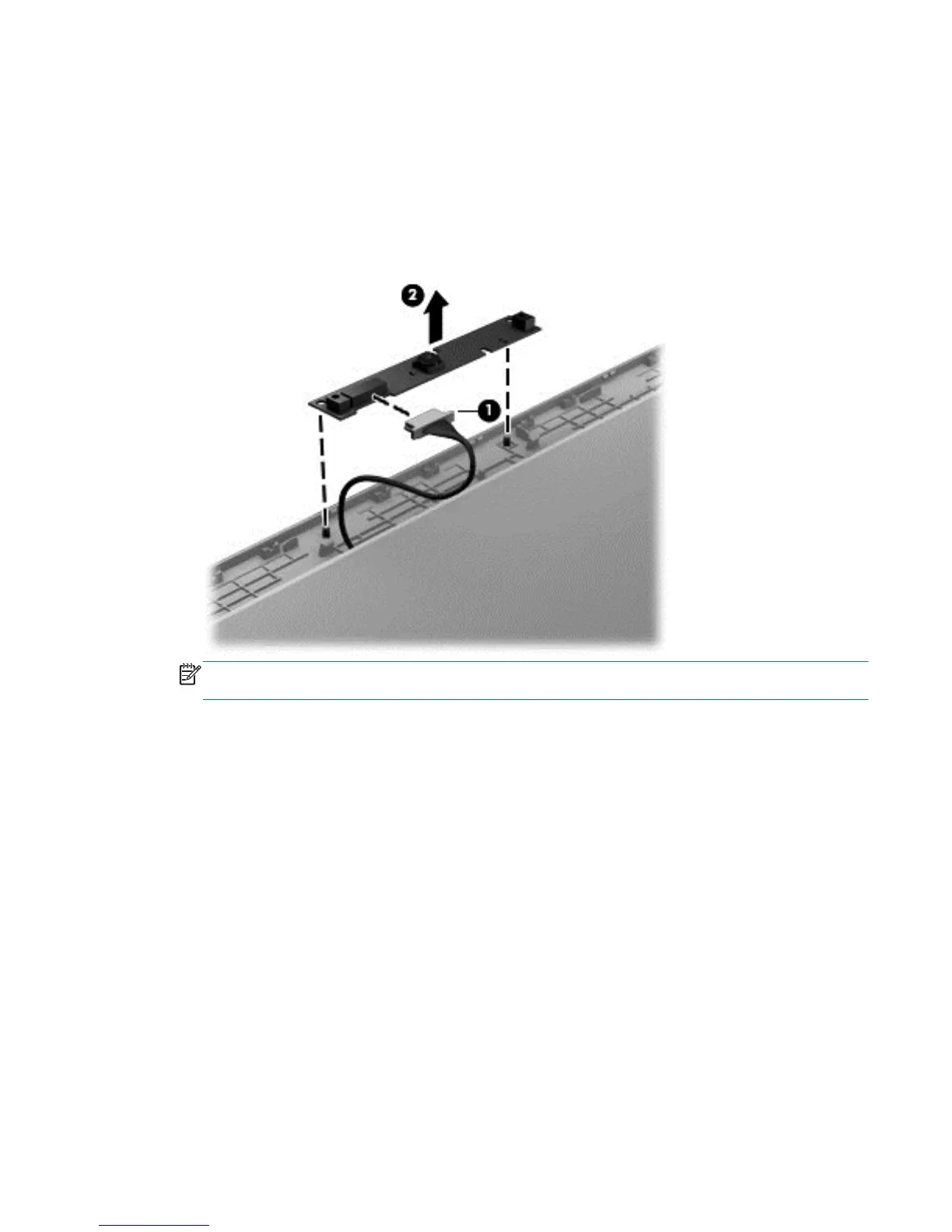

12. If it is necessary to replace the webcam module (shown in the following image) or microphone
module from the display enclosure, disconnect the cable from the module (1), and then gently
pull the module away from the double-sided tape on the display enclosure (2).
The webcam module is available using spare part number 683508-001.
NOTE: The microphone module is removed using the same procedure and is available using
spare part number 647675-001
13. If it is necessary to replace the display panel, remove the four Phillips PM2.5×4.0 screws (1) at
the bottom and two Phillips PM2.5×4.0 broadhead screws (2) at the top that secure the panel to
the display enclosure.
14. Rotate the top of the panel upward to remove it from the housing..
The display panel is available using the following spare part numbers:
● 646375-001: 35.6-cm (14.0-inch), Anti-glare
●
646989-001: 35.6-cm (14.0-inch), BrightView
Component replacement procedures 81
