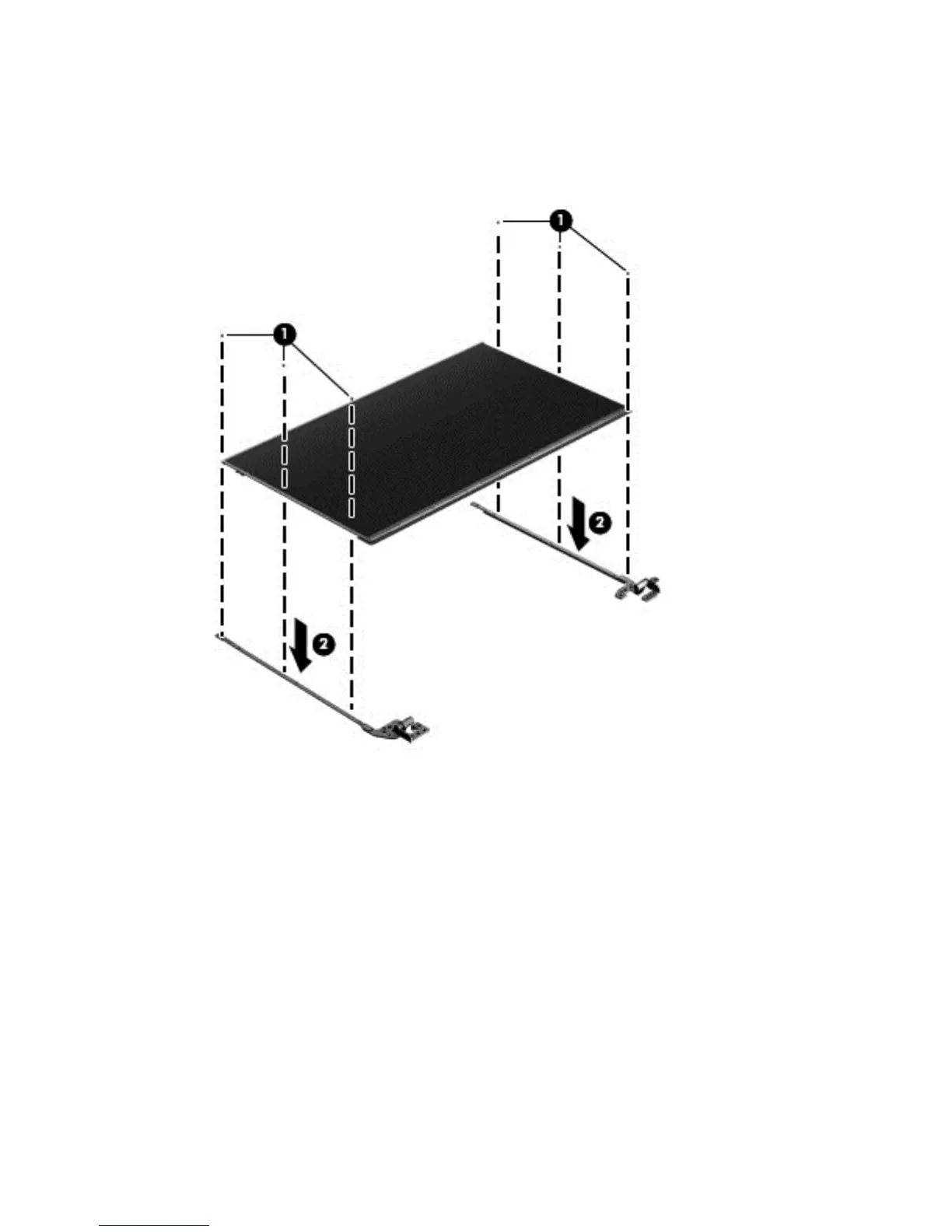

17. If it is necessary to replace the display hinges, remove the three Phillips PM2.0×3.0 screws (1)
that secure each display hinge to the display panel.
18. Remove the display hinges (2).
Display hinges are available using spare part number 683643-001.
Reverse this procedure to reassemble and install the display assembly.
Component replacement procedures 83
