Table 6-2 RTC battery description and part number
Description Spare part number
RTC battery M34737-001
Before removing the RTC battery, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 37).
2. Remove the bottom cover (see Bottom cover on page 37).
3. Disconnect the battery cable from the system board (see Battery on page 46).

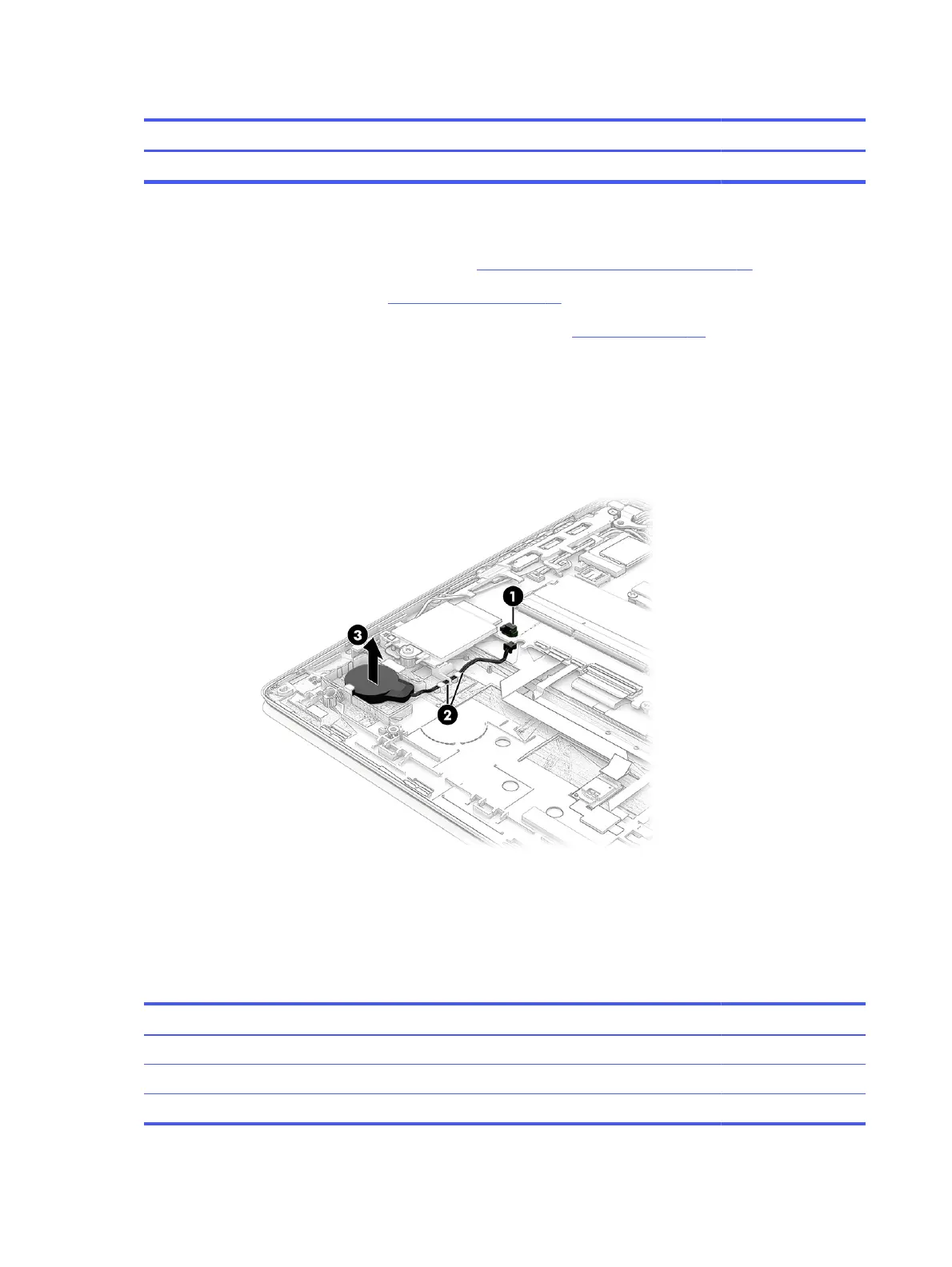

Remove the RTC battery:
1. Disconnect the battery cable from the system board (1).
2. Remove the cable from the clips in the computer chassis (2).
3. Use a tool to release the battery from the computer (3).
To install the RTC battery, reverse this procedure.
I/O board
To remove the I/O board, use this procedure and illustration.
Table 6-3
I/O board description and part number
Description Spare part number
I/O board N01502-001
I/O board cables (included in Cable Kit) N03218-001
Network jack door M21994-001
48 Chapter 6 Removal and replacement procedures for authorized service provider parts
