Installing the Switch
Installation Procedures
2. Check the LEDs on the switch. The LED behavior is described
below.
When the switch is powered on, it performs its diagnostic self
test. The self test takes approximately 8 seconds to complete.
Self Test LED Behavior:
During the self test:
• The LEDs will go on for a couple of seconds during the phases
of the self test.
When the self test completes successfully:
•The Power LED stays on.
• In the default state, the FDx LED stays on and the Spd LED
stays off.
• The port LEDs on the front of the switch go into their normal
operational mode.
– If the ports are connected to active network devices the
Link LEDs should be on.
If the LED display is different than what is described above, the
self test has not completed correctly. Refer to chapter 4,
“Troubleshooting” for diagnostic help.

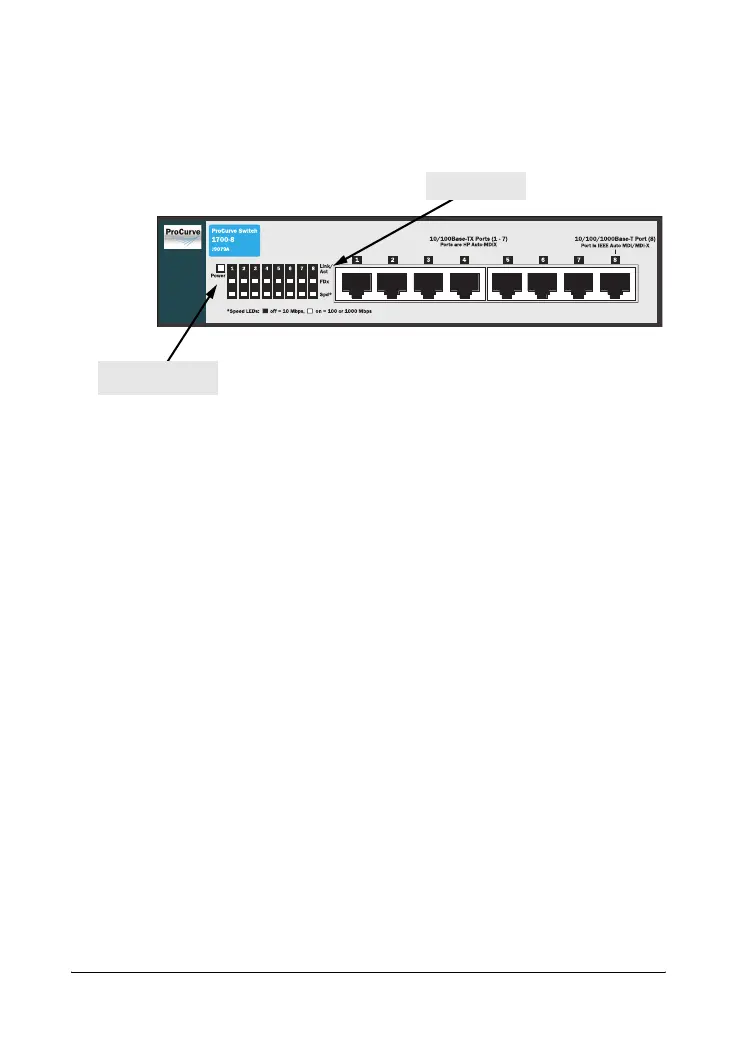

Port LEDs
Power LED
