Configuring and Monitoring Port Security
Port Security

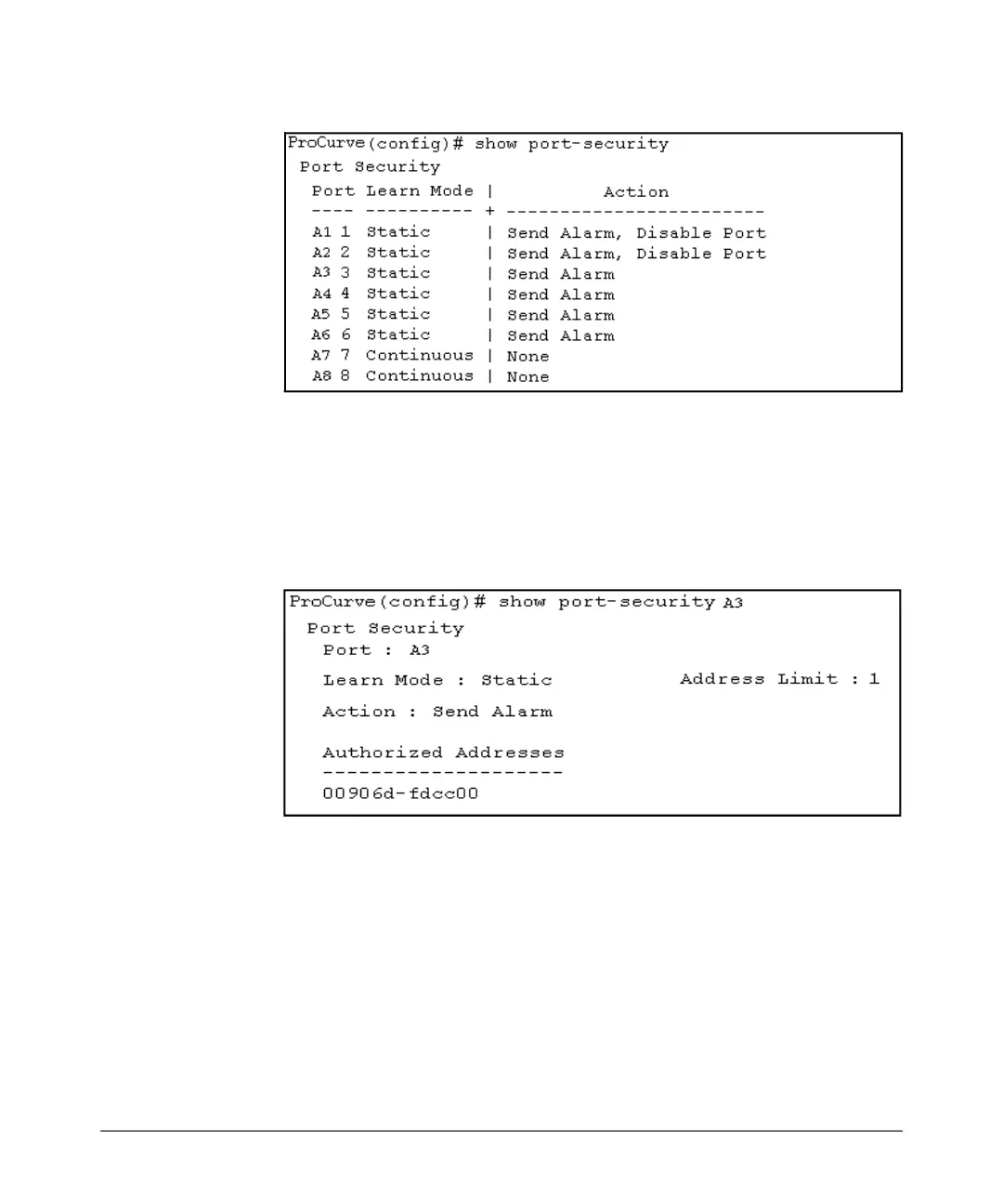

Figure 11-2. Example Port Security Listing (Ports A7 and A8 Show the Default
Setting)
With port numbers included in the command, show port-security displays Learn
Mode, Address Limit, (alarm) Action, and Authorized Addresses for the spec
-
ified ports on a switch. The following example lists the full port security
configuration for a single port:
Figure 11-3. Example of the Port Security Configuration Display for a Single Port
The next example shows the option for entering a range of ports, including a
series of non-contiguous ports. Note that no spaces are allowed in the port
number portion of the command string:
ProCurve(config)# show port-security A1-A3,A6,A8
11-9
