Virus Throttling (5300xl Switches Only)
Basic Connection-Rate Filtering Configuration
Example of a Basic Connection-Rate Filtering Configuration
Server
Company
Intranet
VLAN 1
15.45.100.1
VLAN 10
15.45.200.1
VLAN 15
15.45.300.1
Switch
Server
Server
Switch
Switch
A
B
C
D
E
H
F
G
B1
B2
B3
B9
B4
D1
D2
5300xl Switch
Server

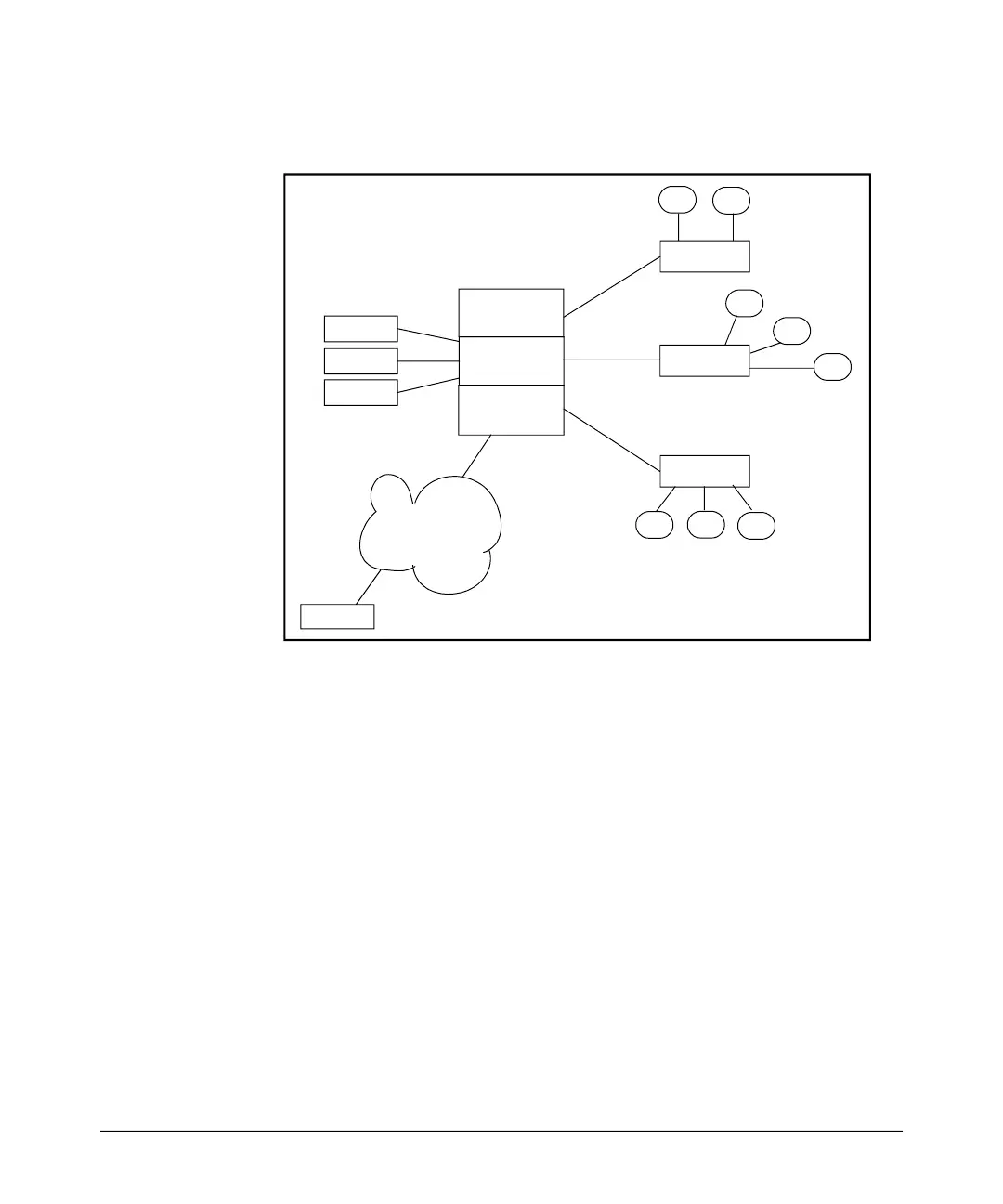

Figure 3-2. Sample Network
Basic Configuration. Suppose that in the sample network, the administra-
tor wanted to enable connection-rate filtering and configure the following
response to high connection-rate traffic on the 5300xl switch:
■ Ports B1 - B3: Throttle traffic from the transmitting host(s).
■ Port B4: Respond with Notify-Only to identify the transmitting
host(s).
■ Ports B9, D1, and D2: Block traffic from the transmitting host(s).
Figure 3-3 illustrates the configuration steps and resulting startup-config file.
