Quality of Service (QoS): Managing Bandwidth More Effectively
Using QoS Classifiers To Configure Quality of Service for Outbound Traffic
2. Configure the priorities for the DSCPs you want to use.
Priorities
Configured
in this step.

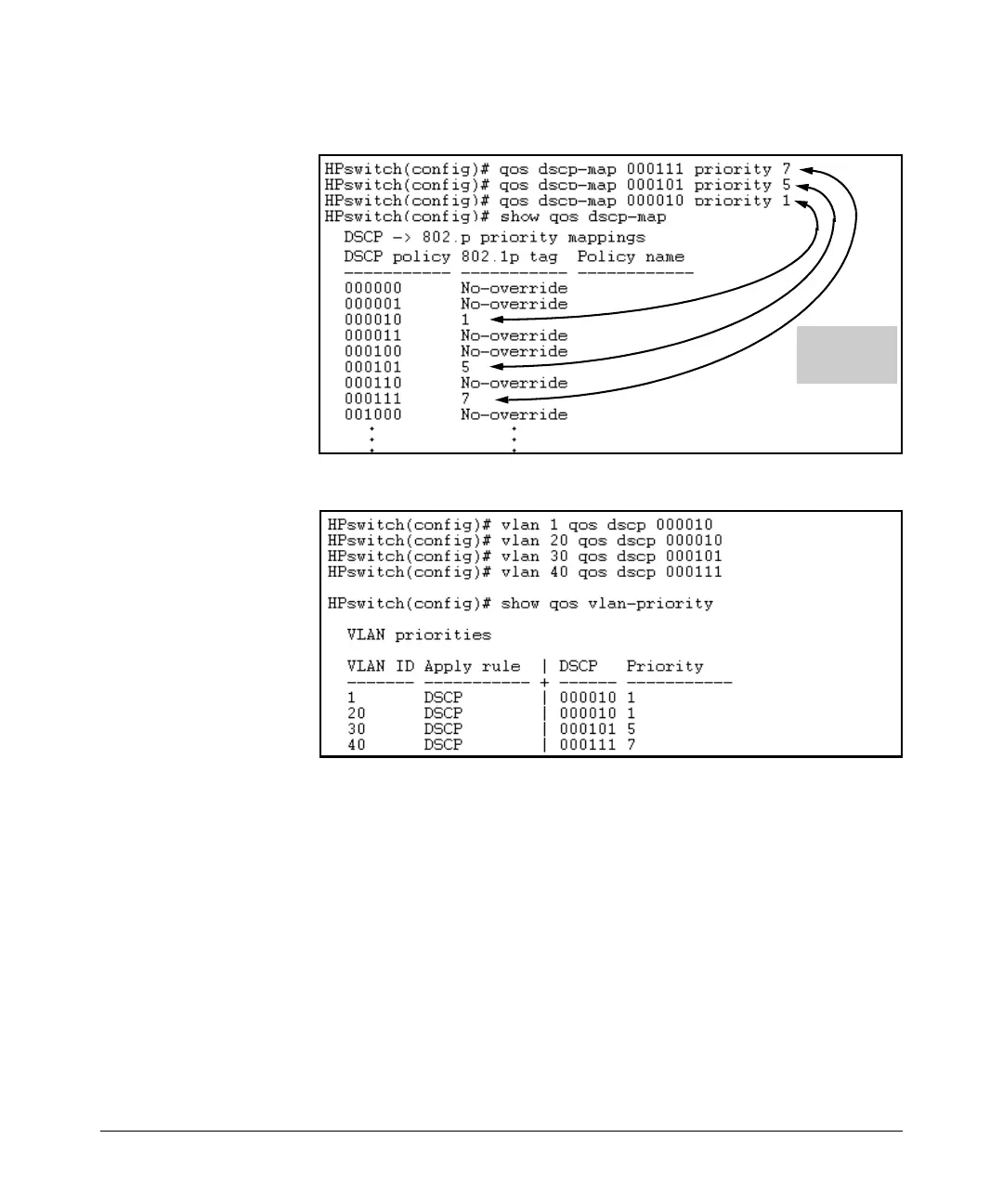

Figure 8-29. Assign Priorities to the Selected DSCPs
3. Assign the DSCP policies to the selected VIDs and display the result.
Figure 8-30. The Completed VID-DSCP Priority Configuration
The switch will now apply the DSCP policies in figure 8-30 to packets received
on the switch with the specified VLAN-IDs. This means the switch will:
â– Overwrite the original DSCPs in the selected packets with the new DSCPs
specified in the above policies.
â– Assign the 802.1p priorities in the above policies to the appropriate
packets.
8-56
