HP ProDesk 405 G2 Microtower User Manual
5
of 1
of 1 rating
144 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
5.

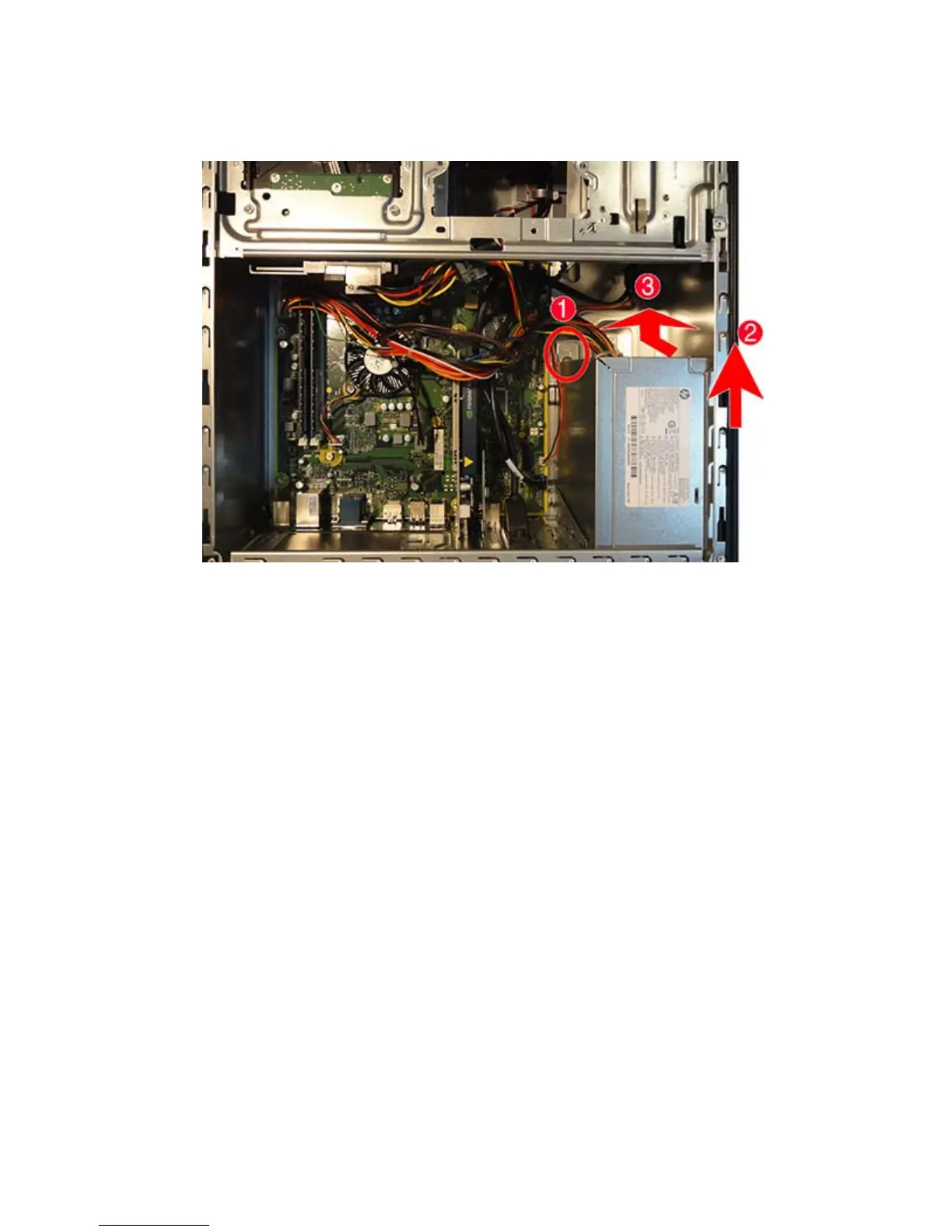

From the inside of the chassis, pr
ess the power supply release button
(1)
, slide the power supply toward
the front of the computer
(2)
, rotate slightly into
the computer so
the power supply clears the lip on the
top of the chassis, and
then lift the
power supply out of the chassis
(3)
.
To install the power supply, reverse the remo
val procedure.
Power supply
57
64
66
