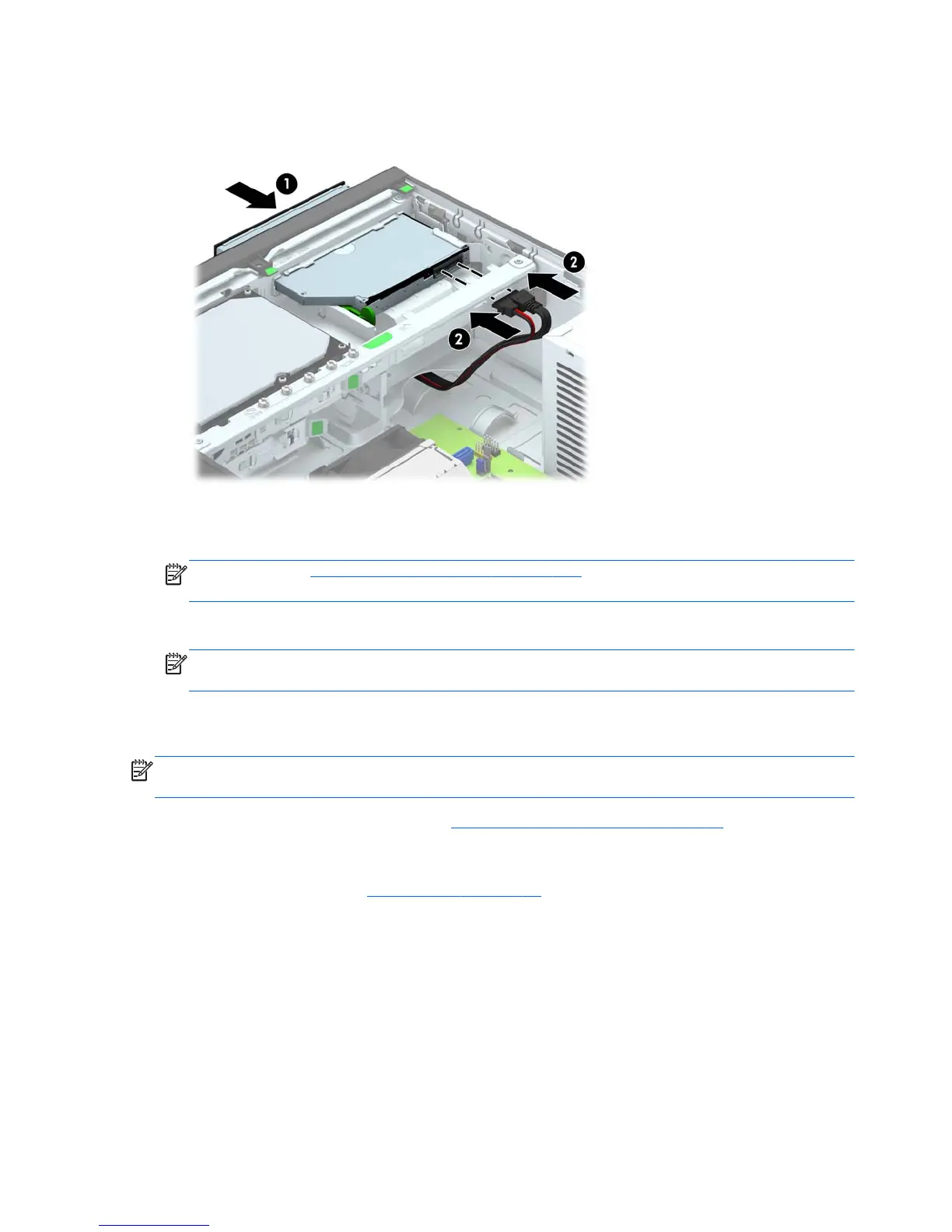

6. Slide the optical drive through the front bezel all the way into the bay so that it locks in place (1),
then connect the power and data cables to the rear of the drive (2).
7. Connect the opposite end of the data cable to the white SATA connector on the system board
labeled SATA5.
NOTE: Refer to System board connections on page 104 for an illustration of the system board
drive connectors.
8. Replace the front bezel if it was removed.
NOTE: An optional bezel trim piece that surrounds the front of the optical drive is available from
HP. Install the bezel trim piece in the front bezel before installing the front bezel.
Removing and replacing a 3.5-inch hard drive
NOTE: Before you remove the old hard drive, be sure to back up the data from the old hard drive so
that you can transfer the data to the new hard drive.
1. Prepare the computer for disassembly (Preparation for disassembly on page 92).
2. If the computer is on a stand, remove the computer from the stand.
3. Remove the access panel (
Access panel on page 93).
4. Disconnect the power cable and data cable from the back of the hard drive.
114 Chapter 6 Removal and replacement procedures: Small Form Factor

HP ProDesk 490 G1 Specifications

General

Tcase	72.72 °C
Bus type	DMI2
Stepping	C0
Processor cache	8 MB
Processor cores	4
System bus rate	5 GT/s
Processor family	Intel® Core™ i7
Processor series	Intel Core i7-4700 Desktop series
Processor socket	LGA 1150 (Socket H3)
Processor threads	8
Processor codename	Haswell
Processor frequency	3.4 GHz
Processor cache type	Smart Cache
Processor lithography	22 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	3.0
Processor boost frequency	3.9 GHz
Processor operating modes	64-bit
ECC supported by processor	No
PCI Express configurations	1x16, 2x8, 1x8+2x4
Thermal Design Power (TDP)	84 W
Number of processors installed	1
Maximum number of PCI Express lanes	16
Memory types supported by processor	DDR3-SDRAM
Memory voltage supported by processor	1.5 V
Memory clock speeds supported by processor	1333, 1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Maximum internal memory supported by processor	32 GB
Memory slots	4x DIMM
Internal memory	16 GB
Memory channels	Dual-channel
Memory clock speed	1600 MHz
Maximum internal memory	- GB
HDD size	3.5 \
HDD speed	7200 RPM
HDD interface	SATA
Storage media	HDD
Optical drive type	DVD Super Multi
Card reader integrated	Yes
Total storage capacity	1000 GB
Intel segment tagging	Enterprise, Small Business
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
On-board graphics card ID	0x412
Discrete graphics card model	NVIDIA® GeForce® GT 630
On-board graphics card model	Intel® HD Graphics 4600
Discrete graphics card memory	2048 GB
Discrete graphics memory type	GDDR3
On-board graphics card family	Intel® HD Graphics
Maximum on-board graphics card memory	2 GB
On-board graphics card OpenGL version	4.3
On-board graphics card base frequency	350 MHz
On-board graphics card DirectX version	11.2/12
On-board graphics card dynamic frequency (max)	1200 MHz
Number of displays supported (on-board graphics)	3
Bundled software	HP Client Security\\r HP Trust Circles Standard\\r HP Wireless HotSpot\\r HP PageLift\\r HP Recovery Manager\\r HP Support Assistant\\r HP ePrint\\r CyberLink PowerDVD\\r CyberLink Power2Go\\r Buy Office
Recovery operating system	Windows 8.1 Pro
Operating system installed	Windows 7 Professional
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
HDMI ports quantity	0
PS/2 ports quantity	2
USB 2.0 ports quantity	6
Chassis type	Micro Tower
Product color	Black
Country of origin	China
Audio system	Realtek ALC221
Product type	PC
Motherboard chipset	Intel® H87
Scalability	1S
Processor code	SR149
Processor ARK ID	75122
Intel TSX-NI version	0.00
Processor package size	37.5 x 37.5 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal solution specification	PCG 2013D
Intel Identity Protection Technology version	1.00
Power supply	300 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	402 mm
Width	182.8 mm
Height	357 mm
Weight	7140 g
