Fan-sink
NOTE: The fan-sink spare park kit includes replacement thermal material.
Follow these steps to remove the fan-sink:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 28).
2. Remove the access panel (see Access panel on page 29), and then remove the following components:
a. Front bezel (see Front bezel on page 31)
b. Drive cage (see Drive cage on page 34)
c. Shroud (see Fan shroud on page 38)

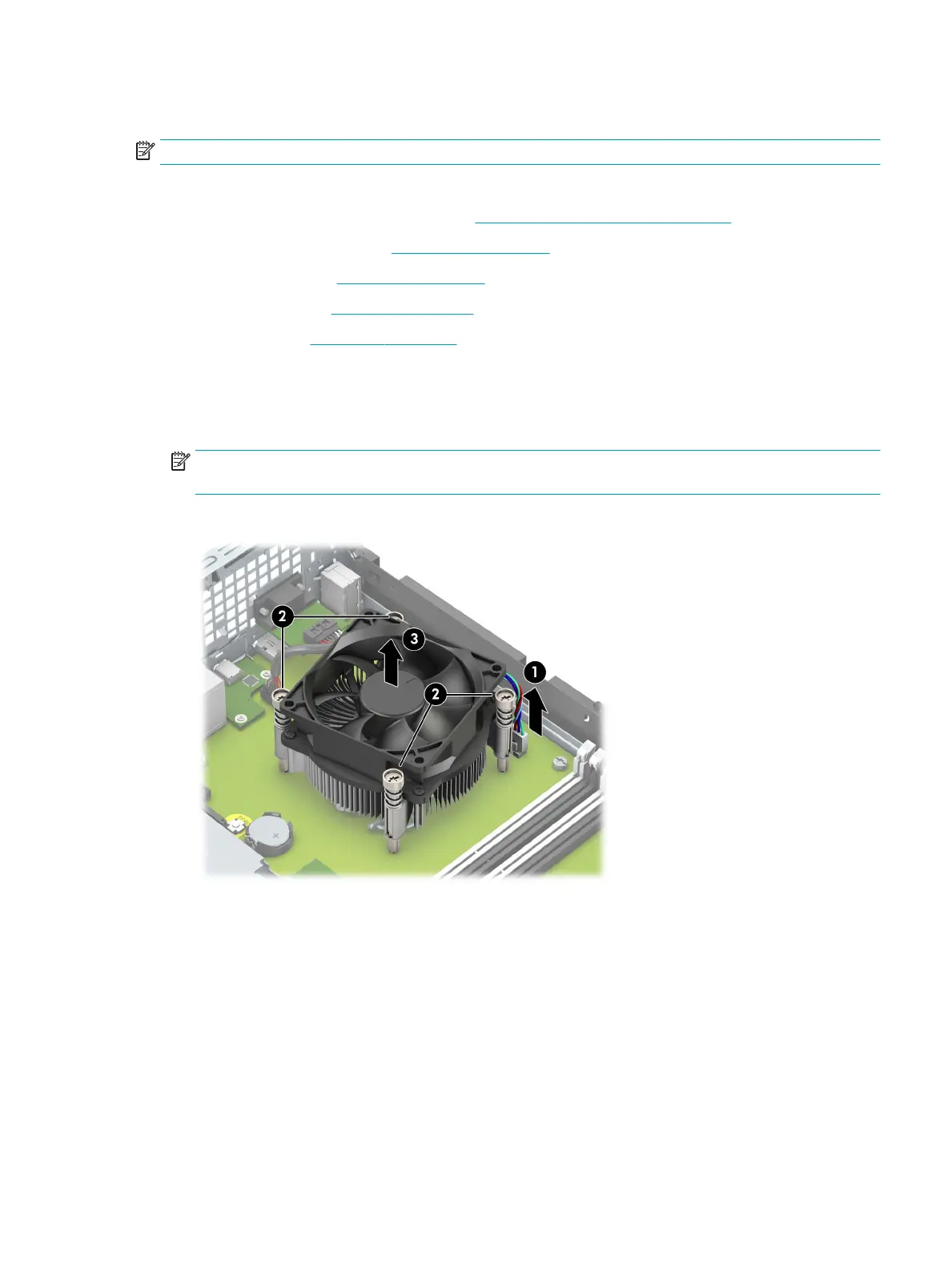

Remove the fan-sink:
1. Disconnect the fan-sink cable (1) from the system board.
2. Loosen the four slotted Torx-15 captive screws (2) that secure the fan-sink to the computer chassis.
NOTE: Due to the adhesive nature of the thermal material located between the fan-sink and
the processor, it may be necessary to move the fan-sink from side to side when removing the it.
3. Remove the fan-sink (3).
Reverse this procedure to install the fan-sink.
Fan-sink 39
