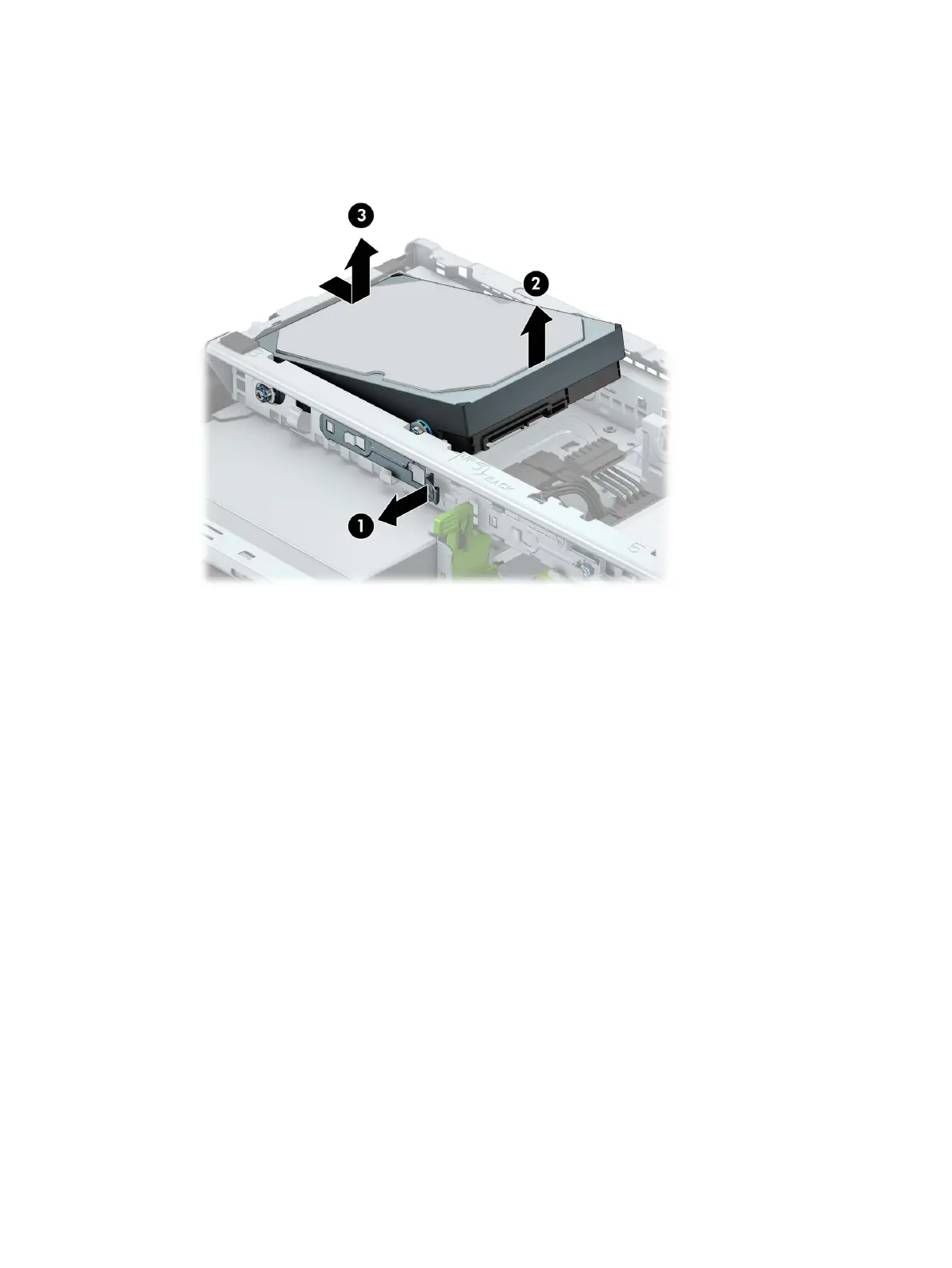

6. Release the retention clip (1) that secures the 3.5-inch hard drive to the drive cage.
7. Lift the right side of the 3.5-inch hard drive (2) until it releases from the slots in the drive cage.
8. Slide the 3.5-inch hard drive to the right as far as it will go, and then remove the 3.5-inch hard drive (3).
Reverse this procedure to install the hard drives.
Hard drives 39
