HP ProLiant BL460c G6 User Manual

Component identification 9
Online/activity
LED (green)
Fault/UID LED
(amber/blue)
Interpretation
Off
Steadily amber
A critical fault condition has been identified for this drive, and the
controller has placed it offline. Replace the drive as soon as
possible.
Off
Amber, flashing
regularly (1 Hz)
A predictive failure alert has been received for this drive. Replace
the drive as soon as possible.
Off
Off The drive is offline, a spare, or not configured as part of an array.

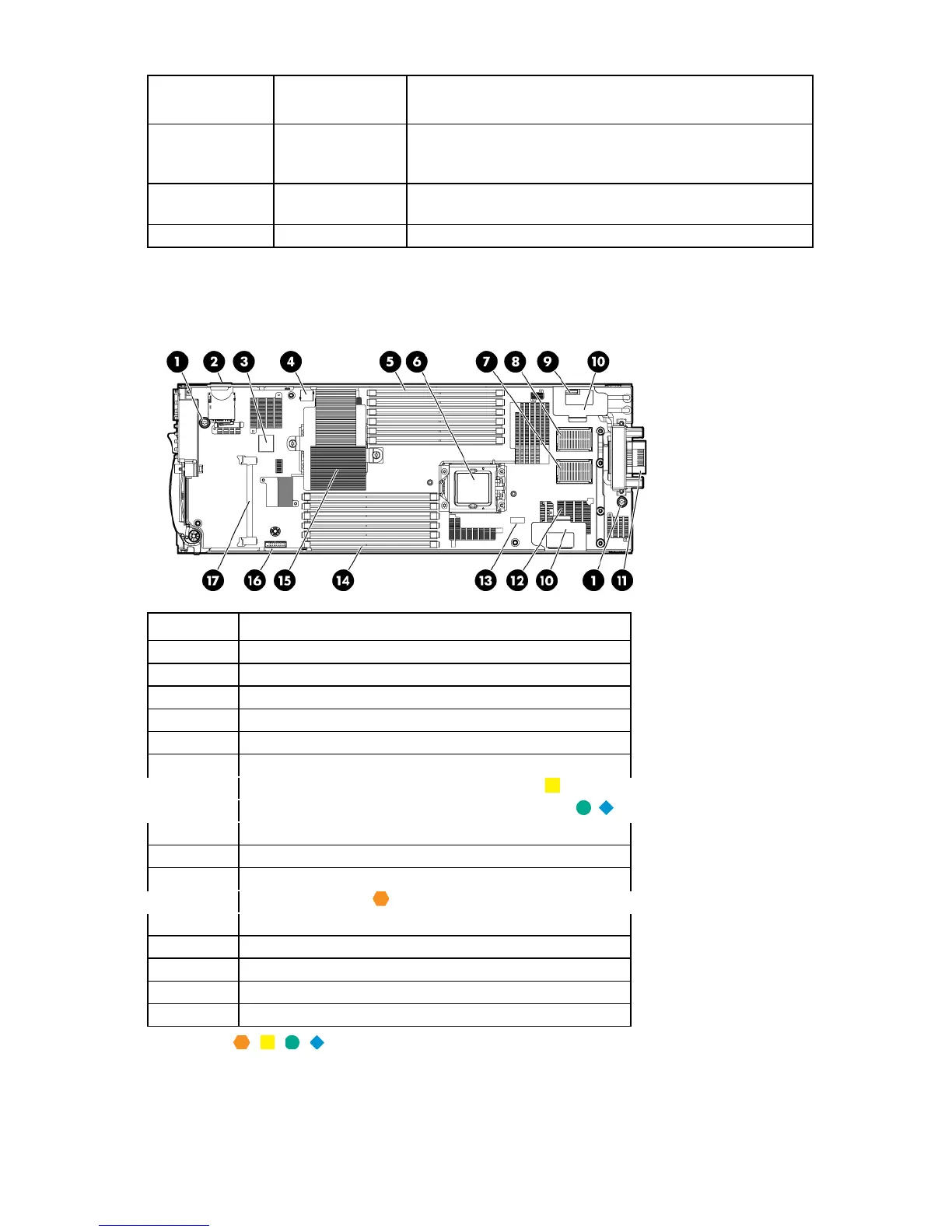

System board components
Item Description
1
System board thumbscrews (2)
2
SD card slot
3
Internal USB connector
4
Hard drive backplane connector
5
Processor 2 DIMM slots (6)
6
Processor socket 2
7
Mezzanine connector 1 (Type I mezzanine only)
8
Mezzanine connector 2 (Type I or Type II mezzanine)
9
System battery
10
Battery tray
11
Enclosure connector
12
Embedded NICs (2)
13
System maintenance switch
14
Processor 1 DIMM slots (6)
15
Processor socket 1 (populated)
16
TPM connector
17
Cache module connector
The symbols correspond to the symbols located on the interconnect bays. For more information, see the
HP ProLiant BL460c G6 Server Blade Installation Instructions that ship with the server blade.

HP ProLiant BL460c G6 Specifications

General

Tcase	76 °C
Bus type	QPI
Stepping	D0
FSB Parity	No
Processor code	SLBF6
Processor cache	8 MB
Processor cores	4
Processor model	E5540
System bus rate	5.86 GT/s
Processor series	Intel Xeon 5500 Series
Processor socket	Socket B (LGA 1366)
Processor threads	8
Processor codename	Nehalem EP
Processing Die size	263 mm²
Processor frequency	2.53 GHz
Processor cache type	Smart Cache
Processor lithography	45 nm
Processor system type	DP
Processor manufacturer	Intel
Processor package size	42.5 x 45 mm
Processor front side bus	- MHz
Processor boost frequency	2.8 GHz
Processor operating modes	64-bit
ECC supported by processor	Yes
Thermal Design Power (TDP)	80 W
Number of processors installed	1
CPU multiplier (bus/core ratio)	19
Maximum number of SMP processors	2
Memory types supported by processor	DDR3-SDRAM
Number of Processing Die Transistors	731 M
Memory channels supported by processor	Triple
Memory clock speeds supported by processor	800, 1066 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Maximum internal memory supported by processor	144 GB
HDD size	- \
HDD interface	Serial ATA, Serial Attached SCSI (SAS)
Total storage capacity	0 GB
Maximum storage capacity	1 TB
Number of HDDs installed	0
Memory slots	12x DIMM
Internal memory	6 GB
Memory clock speed	1333 MHz
Maximum internal memory	192 GB
Memory layout (slots x size)	3 x 2 GB
Cabling technology	10/100/1000Base-T(X)
USB 2.0 ports quantity	-
Chassis type	Blade
Processor ARK ID	37104
Intel® Turbo Boost Technology	1.0

Weight and Dimensions

Depth	56 mm
Width	182 mm
Height	510 mm
Weight	6440 g
