Operations 15
2. Remove the server blade (on page 13).
3. Remove the access panel (on page 14).
4. Disconnect the FBWC battery pack cabling, if connected ("FBWC capacitor pack cabling" on page

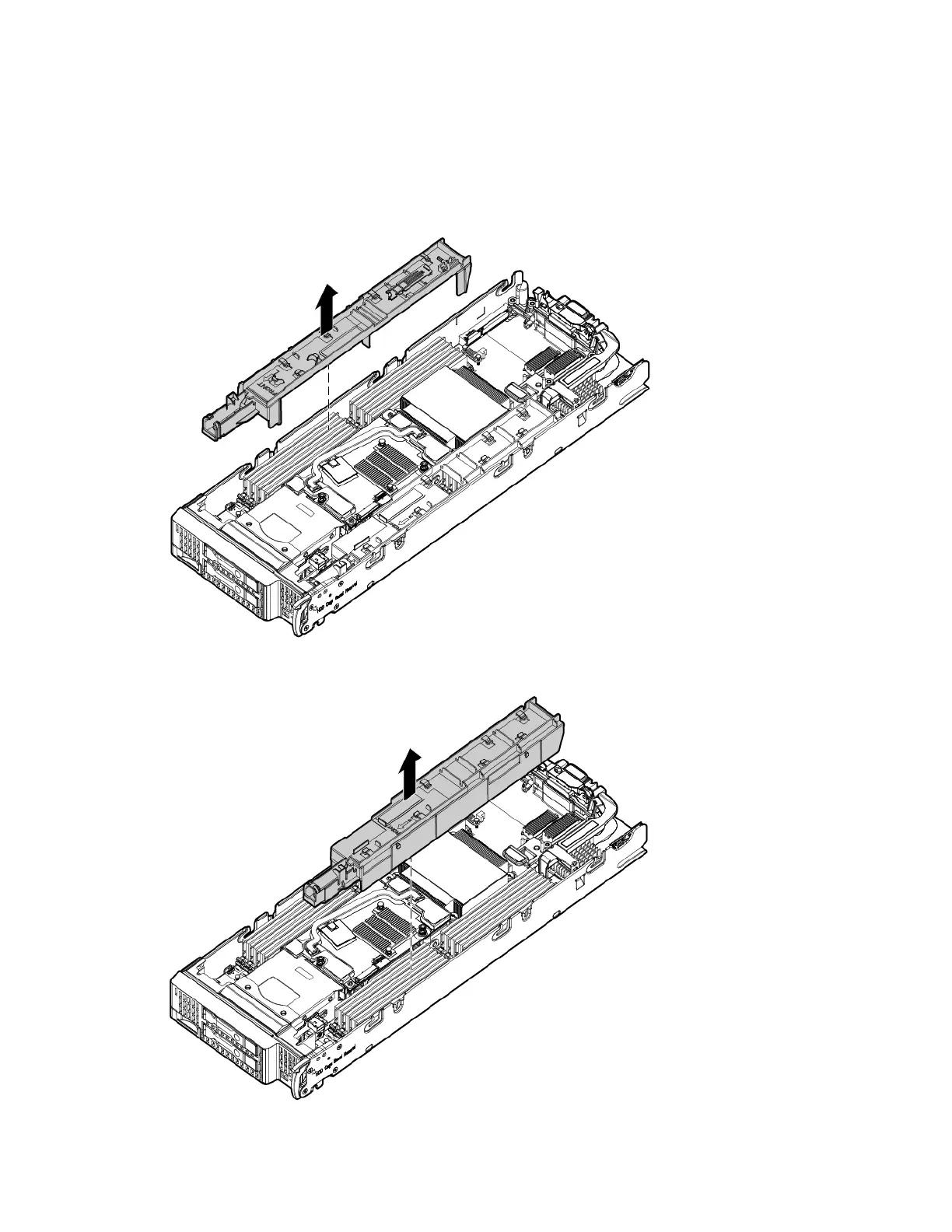

43).
5. Remove one or more DIMM baffles.
o DIMM baffle (left side)
o DIMM baffle (right side)
