Cabling 45
Accessing local media devices
Use the following configuration when configuring a server blade or loading software updates and patches
from a USB CD/DVD-ROM.
Use a USB hub when connecting a USB CD-ROM drive to the server blade. The USB hub provides additional
connections.

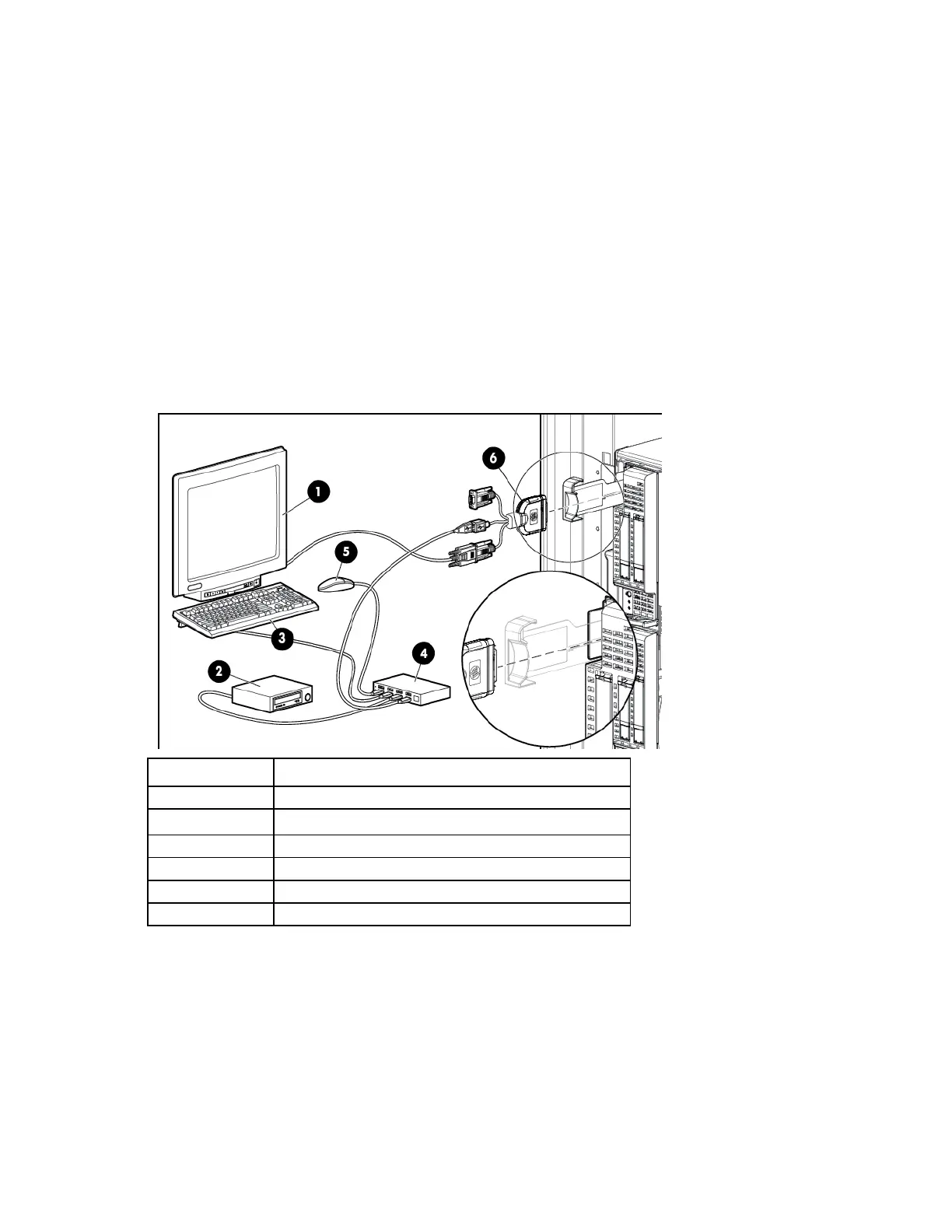

1. Open the serial label pull tab and connect the HP c-Class Blade SUV cable to the server blade.
2. Connect the video connector to a monitor.
3. Connect a USB hub to one USB connector.
4. Connect the following to the USB hub:
o USB CD/DVD-ROM drive
o USB keyboard
o USB mouse
Item Description
1
Monitor
2
USB CD/DVD-ROM drive
USB keyboard
4
USB hub
5
USB mouse
6
HP c-Class Blade SUV Cable
