Remove the SAS controller
1. Power down the server blade (on page 12).
2. Remove the server blade (on page 13).
3. Remove the access panel (on page 14).
4. Disconnect the FBWC battery pack cabling, if connected ("FBWC capacitor pack cabling" on page
43).
CAUTION: Always remove the SAS controller before removing the drive cage.
CAUTION: Always be sure that both captive screws are disengaged before removing the SAS
controller. Failure to disengage the screws may result in damage to the SAS controller or the SAS
backplane and bracket.

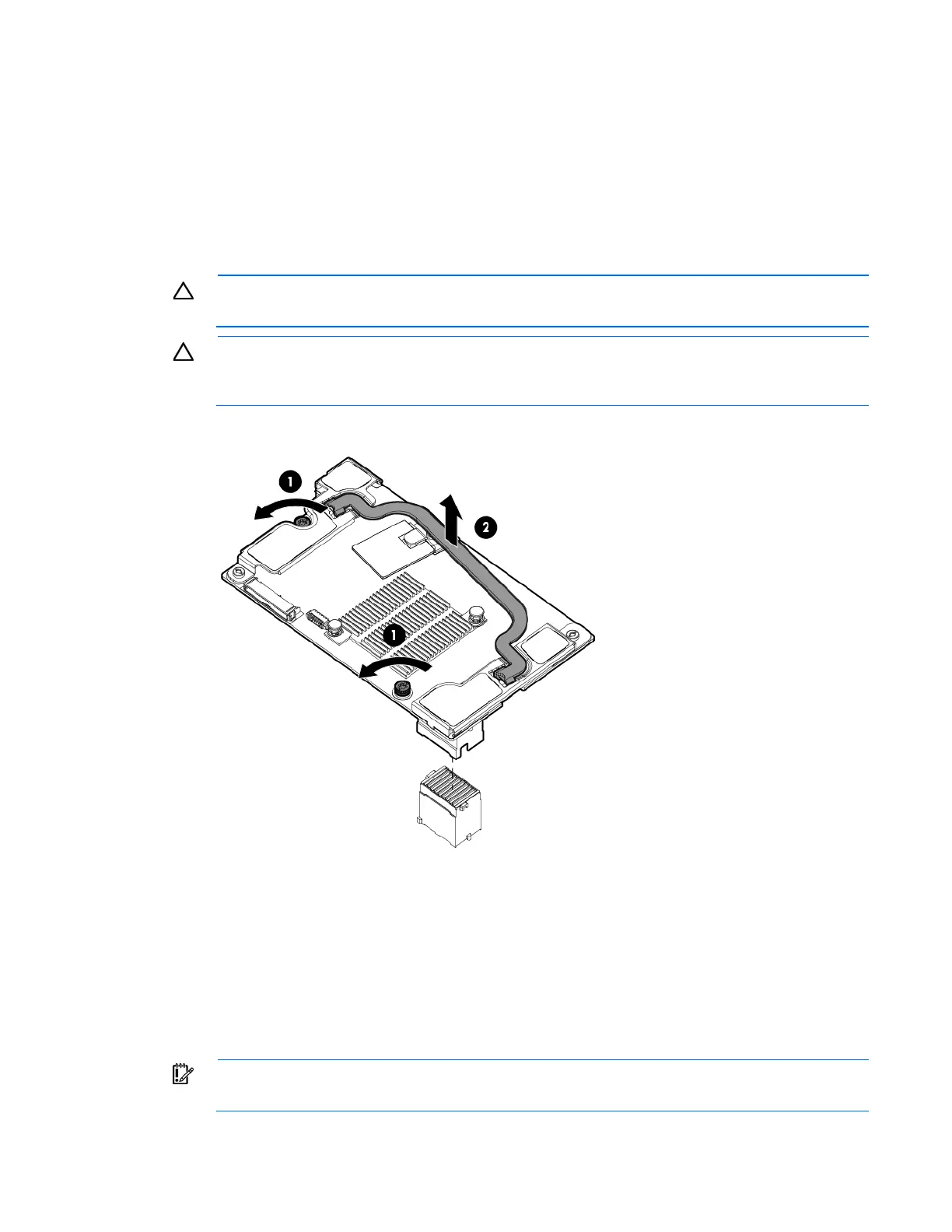

5. Remove the SAS controller.
Install the SAS controller
1. Power down the server blade (on page 12).
2. Remove the server blade (on page 13).
3. Remove the access panel (on page 14).
4. Disconnect the FBWC battery pack cabling, if connected ("FBWC capacitor pack cabling" on page
43).
IMPORTANT: Always close the SAS controller handle before installing the SAS controller.
