HP ProLiant BL460c Gen8 - System Board Components; System Maintenance Switch

Component identification 8
Item LED Status Definition
Solid amber The drive has failed.
Off The drive is not configured by a RAID controller.

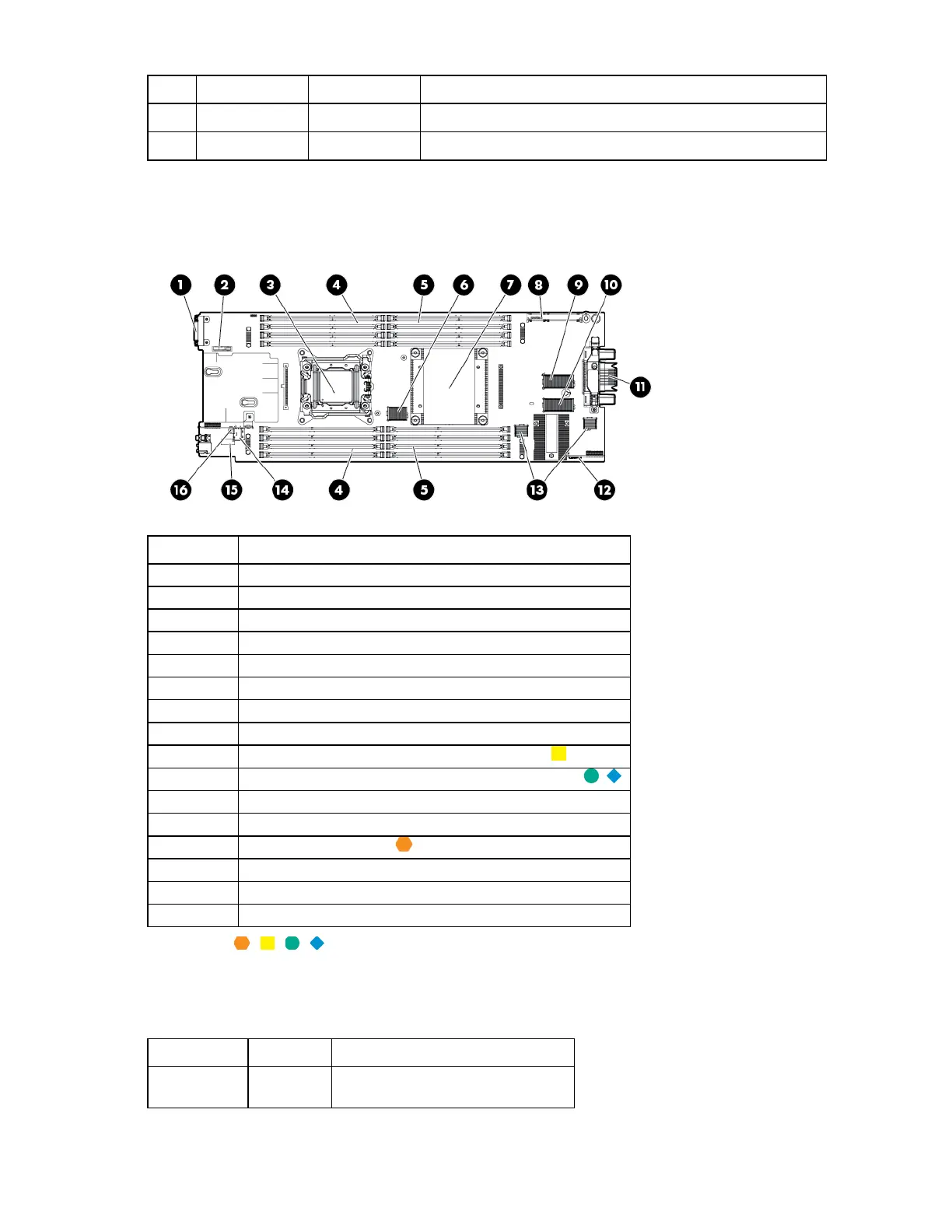

System board components
Item Description
1
HP c-Class Blade SUV Cable connector
2
System battery
3
Processor socket 2
4
Processor 2 DIMM slots (8)
5
Processor 1 DIMM slots (8)
6
SAS controller connector
7
Processor socket 1 (populated)
8
Accelerator cache connector
9
Mezzanine connector 1 (Type A mezzanine only)
10
Mezzanine connector 2 (Type A or Type B mezzanine)
11
Enclosure connector
12
MicroSD card slot
13
FlexLOM connectors (2)
14
Internal USB connector
15
System maintenance switch
16
TPM connector
The symbols correspond to the symbols located on the interconnect bays. For more information, see the
HP ProLiant BL460c Gen8 Server Blade Installation Instructions on the HP website (http://www.hp.com/support).
System maintenance switch
Position Default Function
S1
Off Off = iLO security is enabled.
On = iLO security is disabled.
