Accessing local media devices
Use the following configuration when configuring a server blade or loading software updates and patches
from a USB CD/DVD-ROM.
Use a USB hub when connecting a USB CD-ROM drive to the server blade. The USB connectors on the
SUV cable do not support devices that require greater than a 500mA power source. The USB hub
provides additional connections and the power required to support USB keys or external drives that
require more than 500mA at 5V.

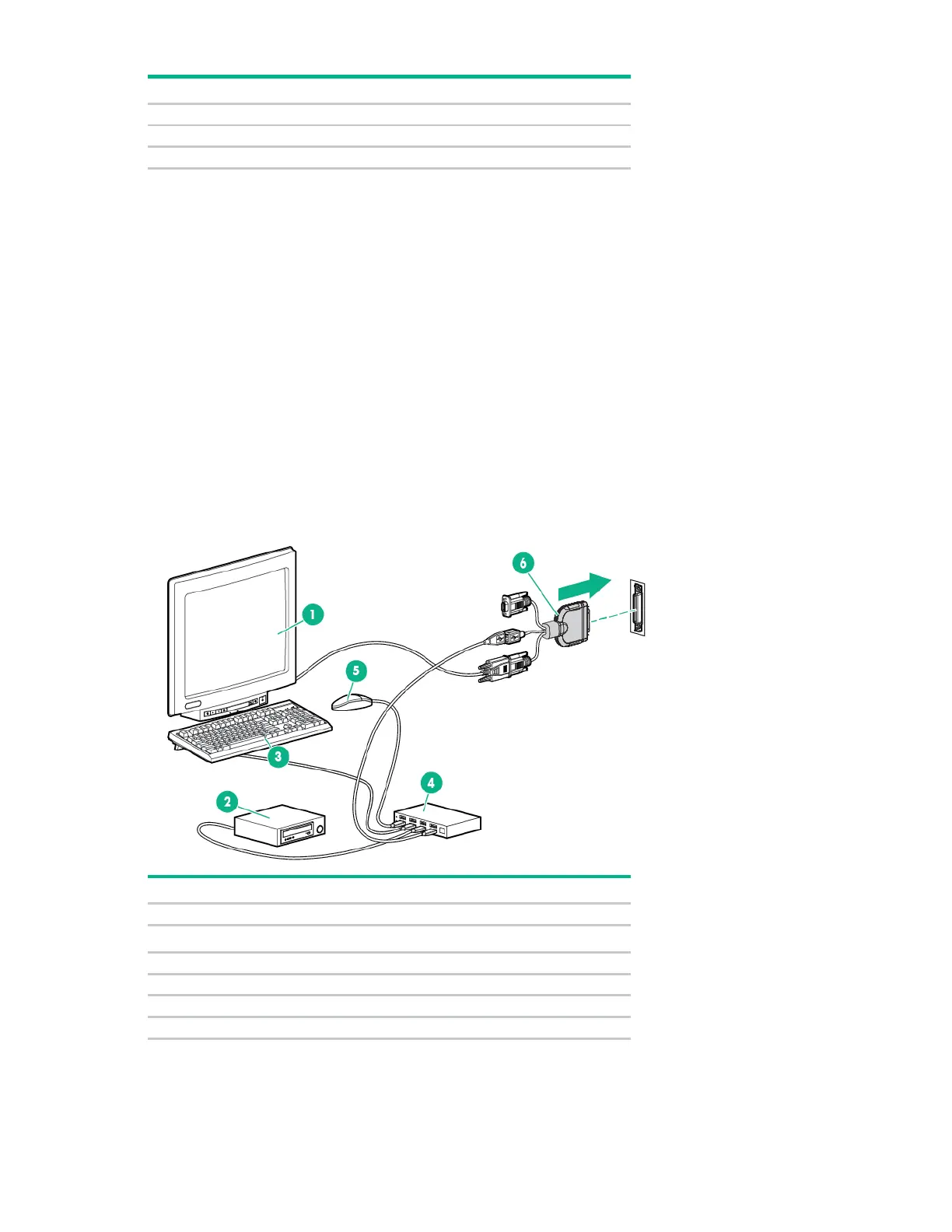

1. Open the serial label pull tab and connect the c-Class Blade SUV cable to the server blade.
2. Connect the video connector to a monitor.
3. Connect a USB hub to one USB connector.
4. Connect the following to the USB hub:
o USB CD/DVD-ROM drive
o USB keyboard
o USB mouse
Item Description
1
Monitor
2
USB CD/DVD-ROM drive
3
USB keyboard
4
USB hub
5
USB mouse
6
c-Class Blade SUV Cable
