HP ProLiant DL120 G7 - PCIe Expansion Slots and System Board

Component identification 10
PCIe expansion slot definitions
Slot Type Length Connector Interconnect
1
PCIe2 Full x16 x16
2
PCIe2 Half x8 x4

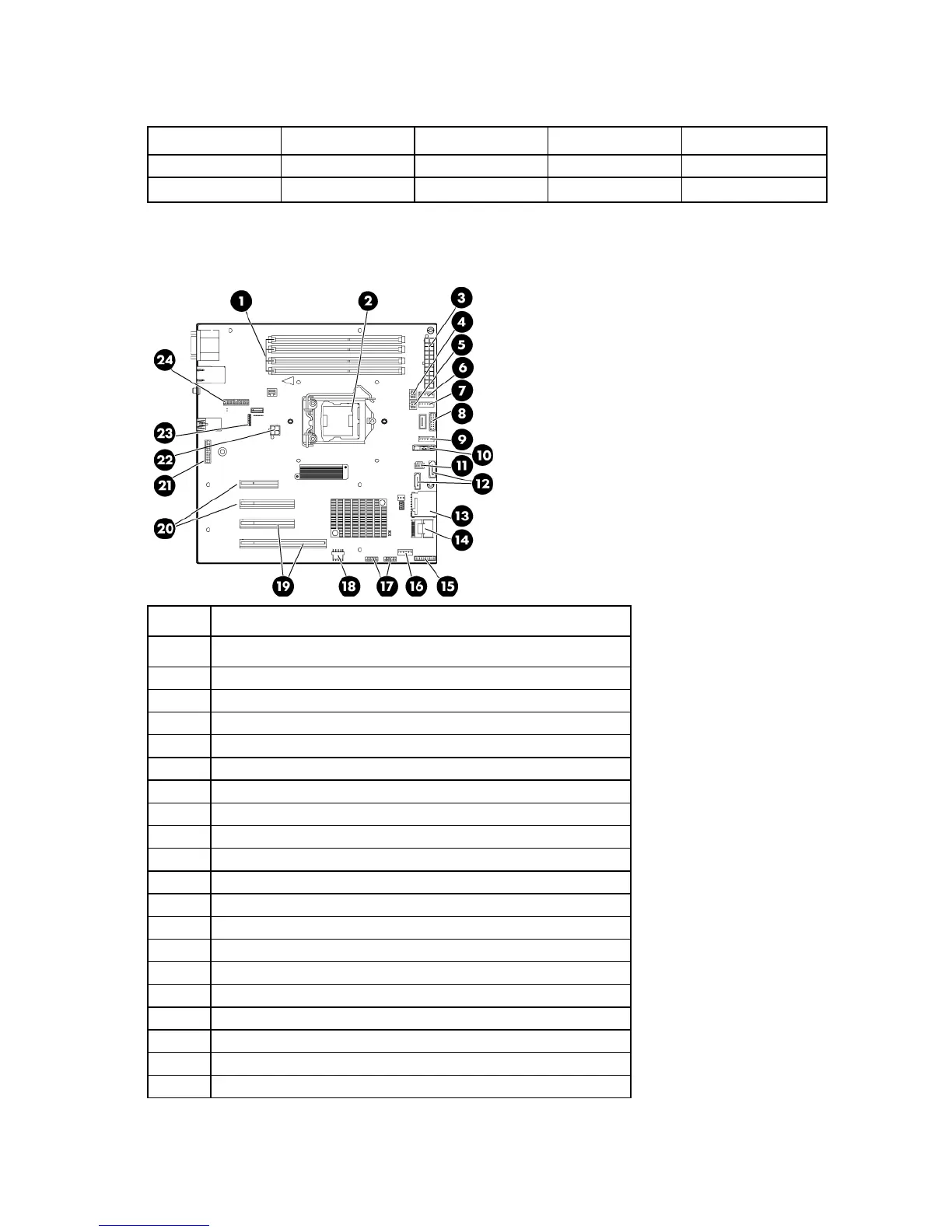

System board components
Item Description
1
DIMM slots 1-4
2
Processor socket
3
System power connector (24 pin)
4
Fan connector 7 (Reserved)
5
Fan connector 8 (Reserved)
6
Fan connector 3
7
Fan connector 4
8
RPS connector
9
Fan connector 5
10
System battery
11
I
2
C cable connector
12
SATA connectors
13
SD card slot
14
Mini-SAS connector
15
Front panel connector
16
Fan connector 6
17
Front USB connectors
18
Internal USB connector
19
PCIe riser board connectors
20
Reserved
