Hardware options installation 35
8.

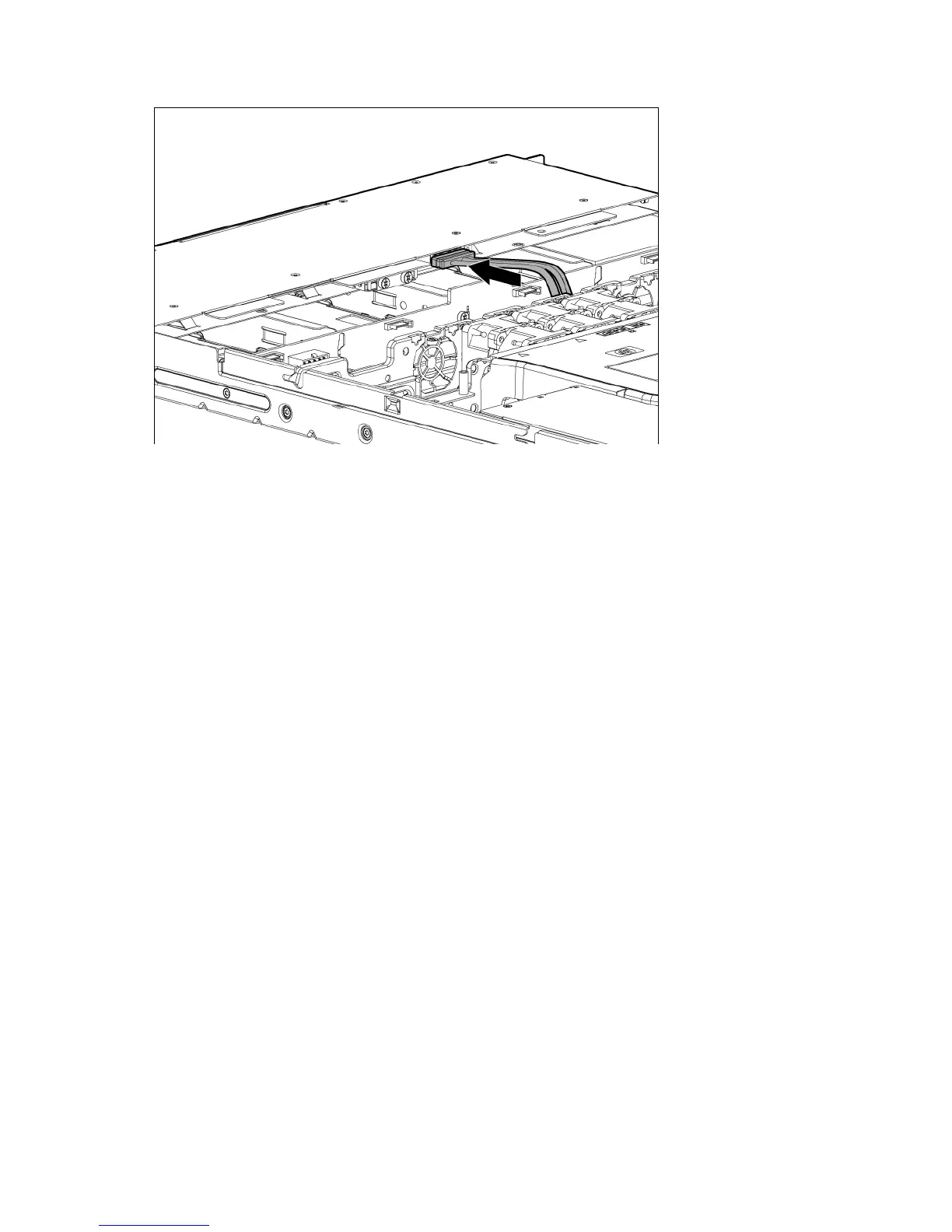

Connect the optical drive and power cable to the optical drive.
9. Connect the power connector to the power supply backplane.
10. Connect the SATA cable to the system board. See the cabling section for correct cable routing ("ODD
cabling" on page 51).
11. Install the air baffle (on page 20).
12. Install the access panel (on page 18).
13. Install the server into the rack ("Installing the server into the rack" on page 25).
14. Power up the server (on page 17).
Dedicated iLO management port module option
To install the component:
1. Power down the server (on page 17).
2. Remove the server from the rack (on page 17).
3. Remove the access panel (on page 18).
4. Remove the air baffle (on page 19).
