Hardware options installation 40

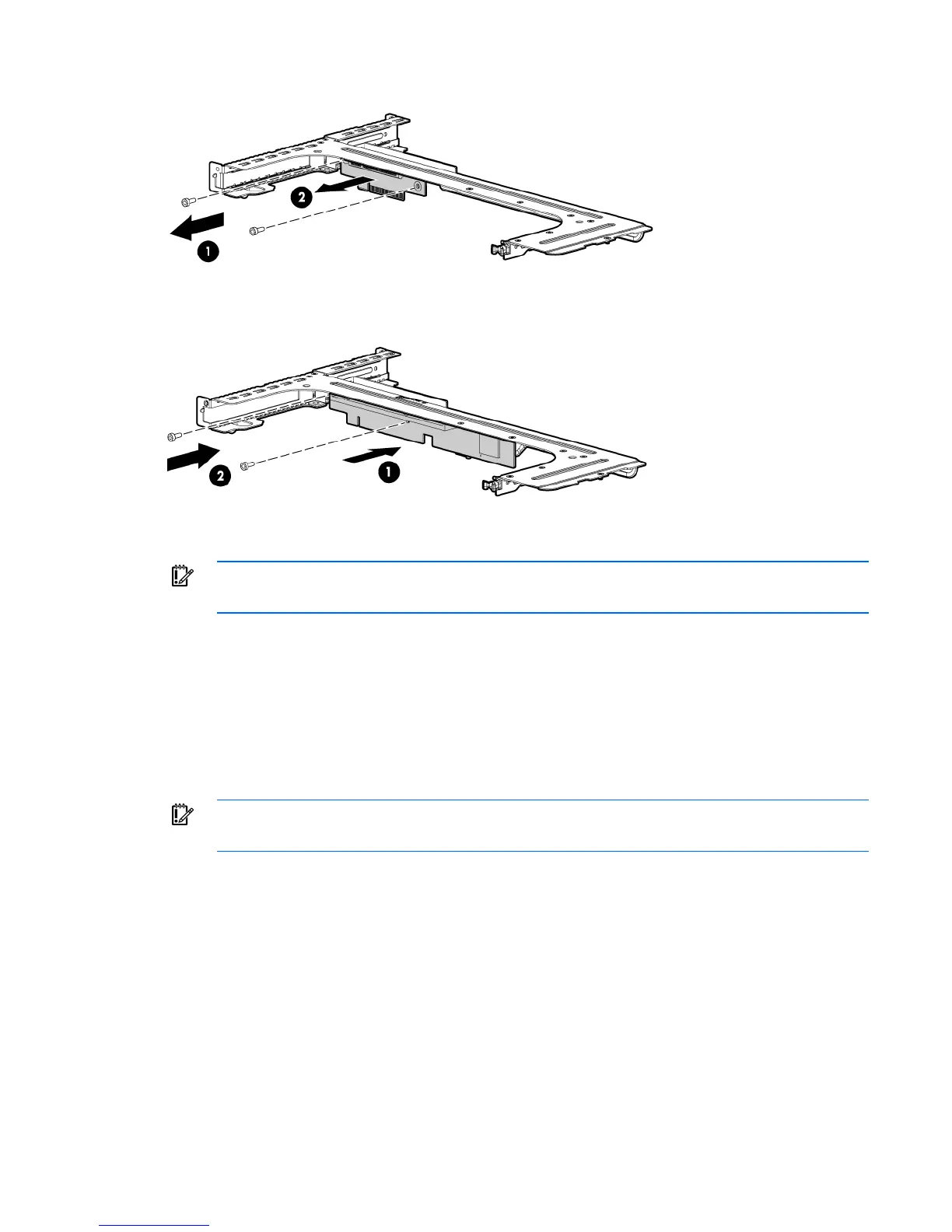

7. Remove the PCIe riser board from the assembly.
8. Install the optional PCI-X riser board.
9. Install a PCI-X expansion board ("Expansion board option" on page 38).
IMPORTANT: The server does not power up if the PCI riser board assembly is not seated
properly.
10. Install the PCI riser board assembly (on page 18).
11. Connect all internal cables for expansion boards.
12. Install the access panel.
13. Install the server into the rack.
Storage controller option
IMPORTANT: For additional installation and configuration information, refer to the
documentation that ships with the option.
To install the component:
1. Power down the server (on page 16).
2. Remove the server from the rack (on page 16).
3. Remove the access panel (on page 17).
4. Remove the air baffle (on page 17).
5. Remove the PCI riser board assembly (on page 18).
6. Remove the hard drive cables.
7. Install the storage controller ("Expansion board option" on page 38).
