HP ProLiant DL320 G6 Server User Manual

Component identification 9
SAS and SATA device numbers

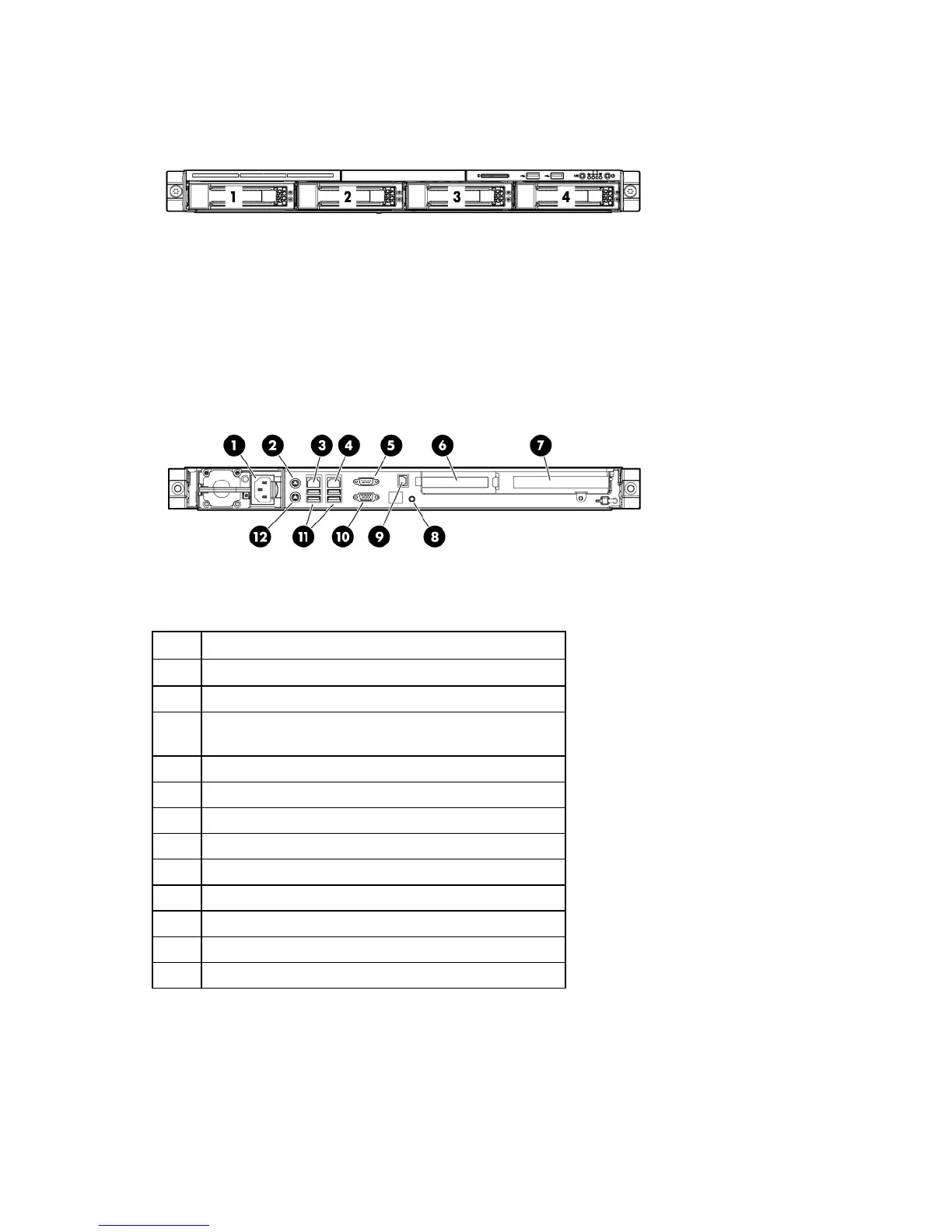

Rear panel components
For this server model, PCI expansion slots 1-3 and 6 are reserved.
Item Description
1 Power cord connector
2 Mouse connector
3 10/100/1000 NIC 1 connector/shared iLO 2
management port
4 10/100/1000 NIC 2 connector
5 Serial connector
6 Slot 5 PCIe2 x16 (4, 2, 1)
7 Slot 4 PCIe2 x16 (16, 8, 4, 1)
8 UID button/LED
9 Dedicated iLO 2 management port
10 Video connector
11 USB connectors (2)
12 Keyboard connector

HP ProLiant DL320 G6 Server Specifications

General

Processor Sockets	1
Chipset	Intel 3420
Maximum Memory	16 GB
Form Factor	1U Rack
Processor	Intel Xeon 3400 series
Memory Slots	4
Storage Controller	HP Smart Array B110i SATA RAID Controller
Drive Bays	4 LFF (3.5-inch) or 8 SFF (2.5-inch)
Hard Drives	SATA or SAS
Optical Drive	Optional DVD-ROM or DVD-RW
Network Controller	HP NC107i PCI Express Gigabit Server Adapter
Expansion Slots	1 x PCIe
Power Supply	Non-Hot Plug, Non-Redundant Power Supply
Operating System Support	Windows Server, Red Hat, SUSE, VMware
Maximum Internal Storage	Up to 8 TB (LFF) or 4.8 TB (SFF)
