Component identification 13
Item Description
8 UID button/LED
9 Video connector
10 Dedicated iLO 2 management port (optional)
11 10/100/1000 NIC 1/shared iLO 2 management port
12 Keyboard connector
PCI expansion slot definitions
For this server model, PCI expansion slots 1-3 and 6-7 are reserved.
Slot Type Length Connector Interconnect
4 PCI Express Full x8 x8
4 Optional PCI-X Full 133 MHz/3.3. V 64 bit
5 PCI Express* Half x8 x1
*x8 PCI Express cards are supported, but will run at x1 speeds.

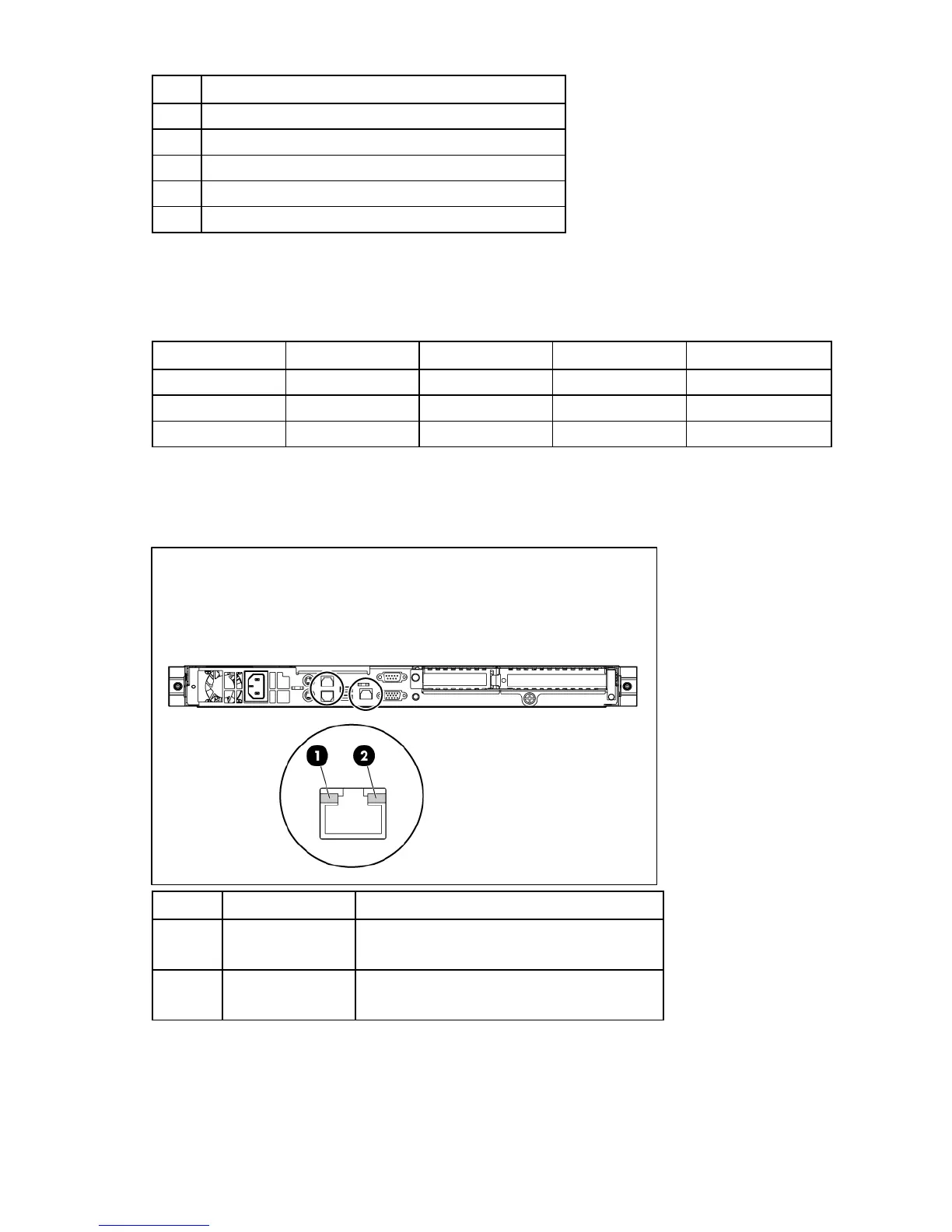

Rear panel LEDs
Item Description Status
1 NIC/iLO 2 activity Green or flashing green = Activity exists.
Off = No activity exists.
2 NIC/iLO 2 link Green = Link exists.
Off = No link exists.
