HP ProLiant DL320 Generation 5p - Internal USB Connector Option

Hardware options installation 48
4.

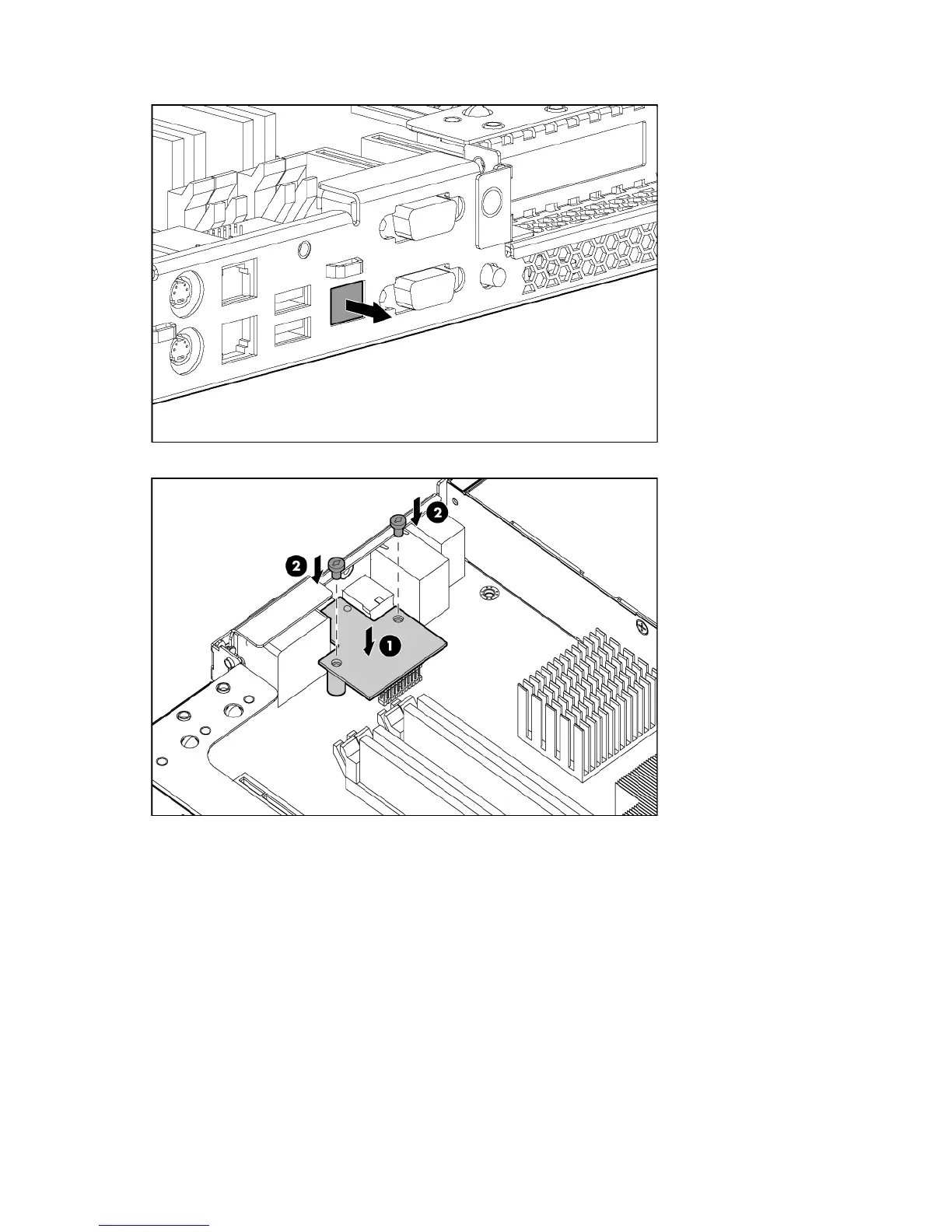

Remove the management port option cover.
5. Using a T-15 Torx screwdriver, install the dedicated iLO 2 management port module.
6. Install the primary access panel.
7. Install the server into the rack.
Internal USB connector option
To install the component:
1. Power down the server (on page 20).
2. Remove the server from the rack (on page 20).
3. Remove the primary access panel (on page 21).
