Hardware options installation 44
PCI-X riser board option
To install the component:
1. Power down the server (on page 20).
2. Remove the server from the rack (on page 20).
3. Remove the primary access panel (on page 21).
4. Disconnect any internal cables connected to any existing expansion boards.
5. Remove the PCI riser board assembly (on page 21).

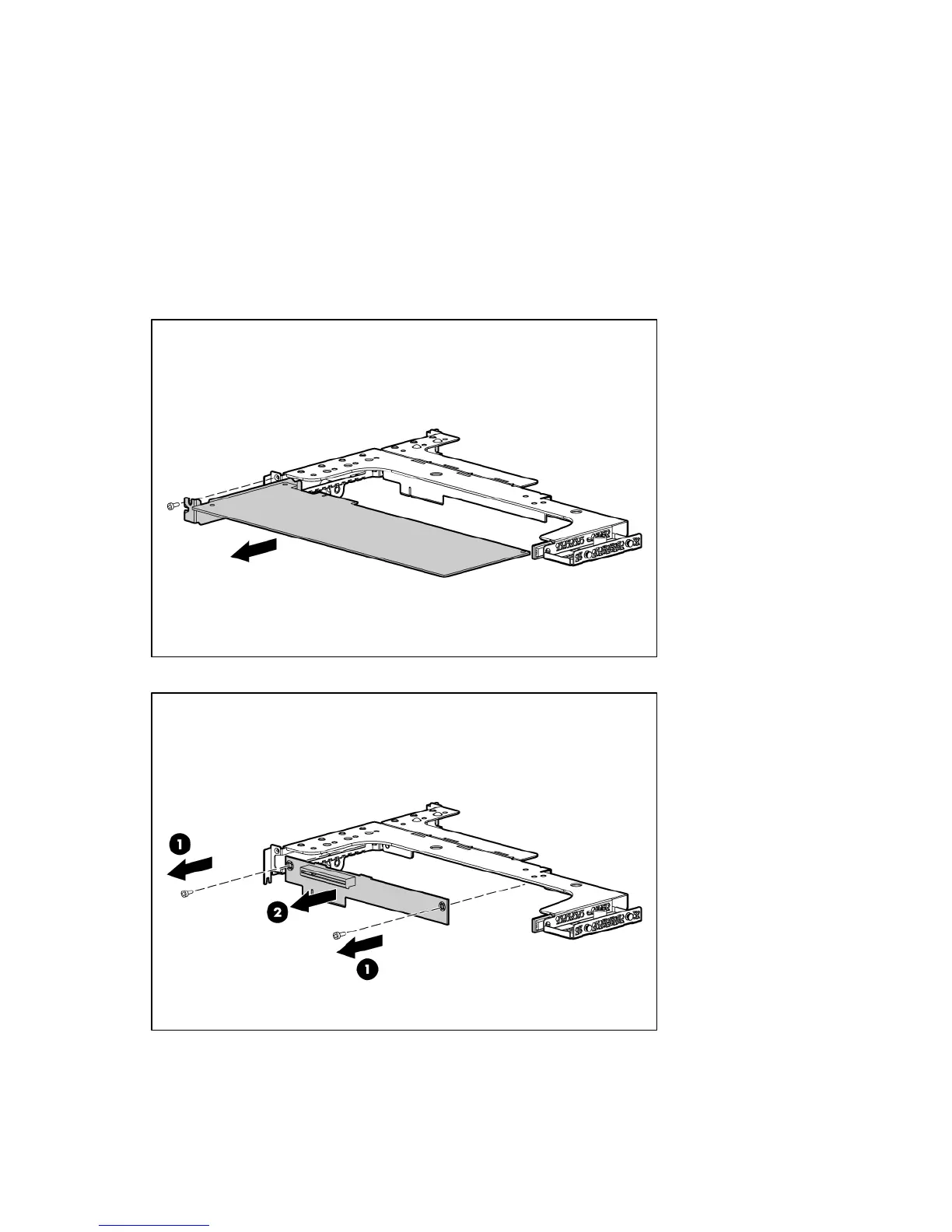

6. Remove any installed expansion boards.
7. Remove the PCIe riser board from the assembly.
