Hardware options installation 31
The following table lists some, but not all, possible configurations. For best performance, HP recommends
dual-bank interleaved mode configurations.
Slot 1A Slot 2B Slot 3A Slot 4B Total memory Mode
512 MB — — — 512 MB Single-bank
512 MB — 512 MB — 1 GB Single-bank interleaved
1 GB — — — 1 GB Single-bank
1 GB — 1 GB — 2 GB Single-bank interleaved
1 GB 1 GB 1 GB 1 GB 4 GB Dual-bank interleaved
2 GB 2 GB 2 GB 2 GB 8 GB Dual-bank interleaved

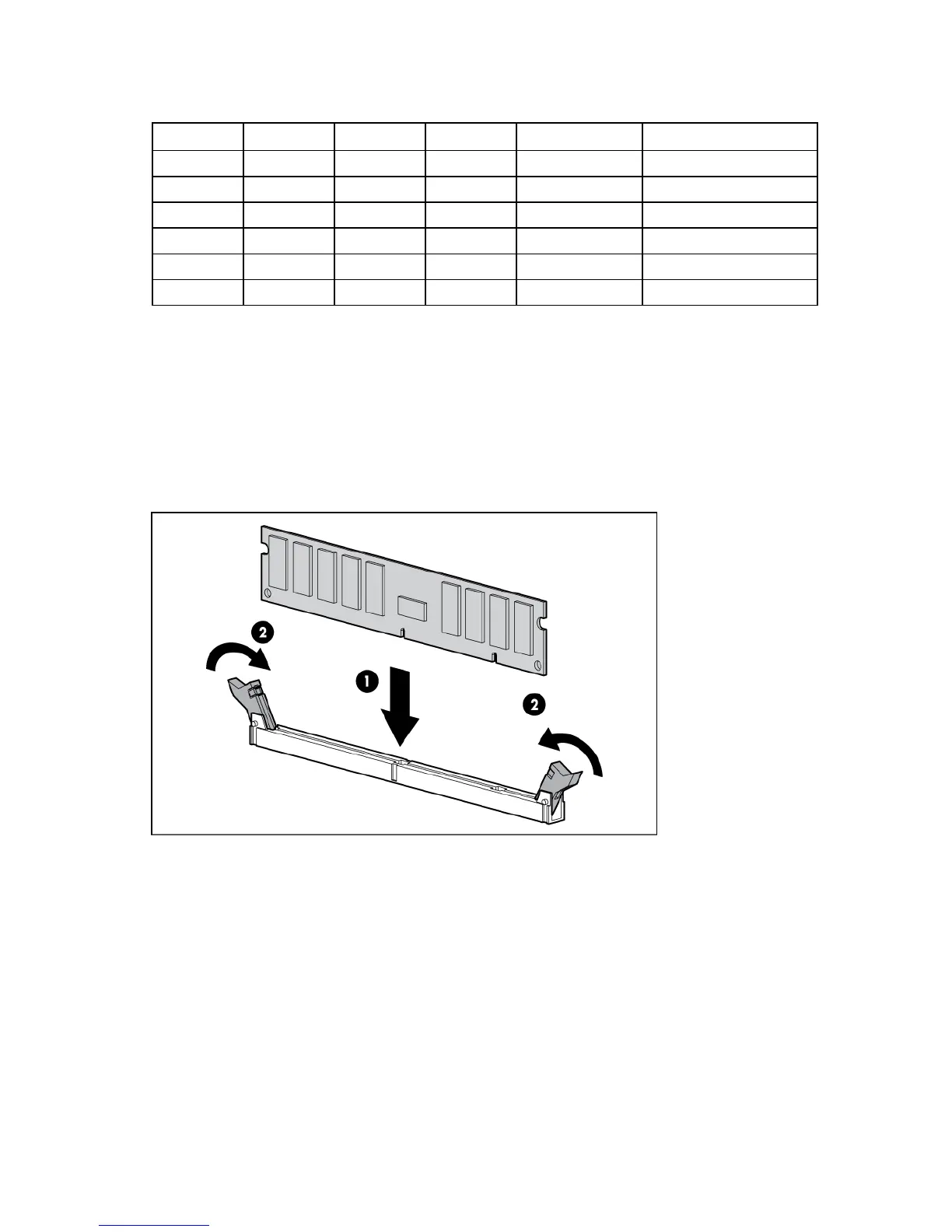

Installing DIMMs
1. Power down the server (on page 20).
2. Remove the server from the rack (on page 20).
3. Remove the primary access panel (on page 21).
4. Open the DIMM slot latches.
5. Install the DIMM.
6. Install the access panel.
7. Install the server into the rack.
Hard drive options
The server provides non-hot plug capability through an embedded SATA controller. To obtain hot-plug
capability, install an optional controller and hot-plug cable option kit.
