Hardware options installation 35
6.

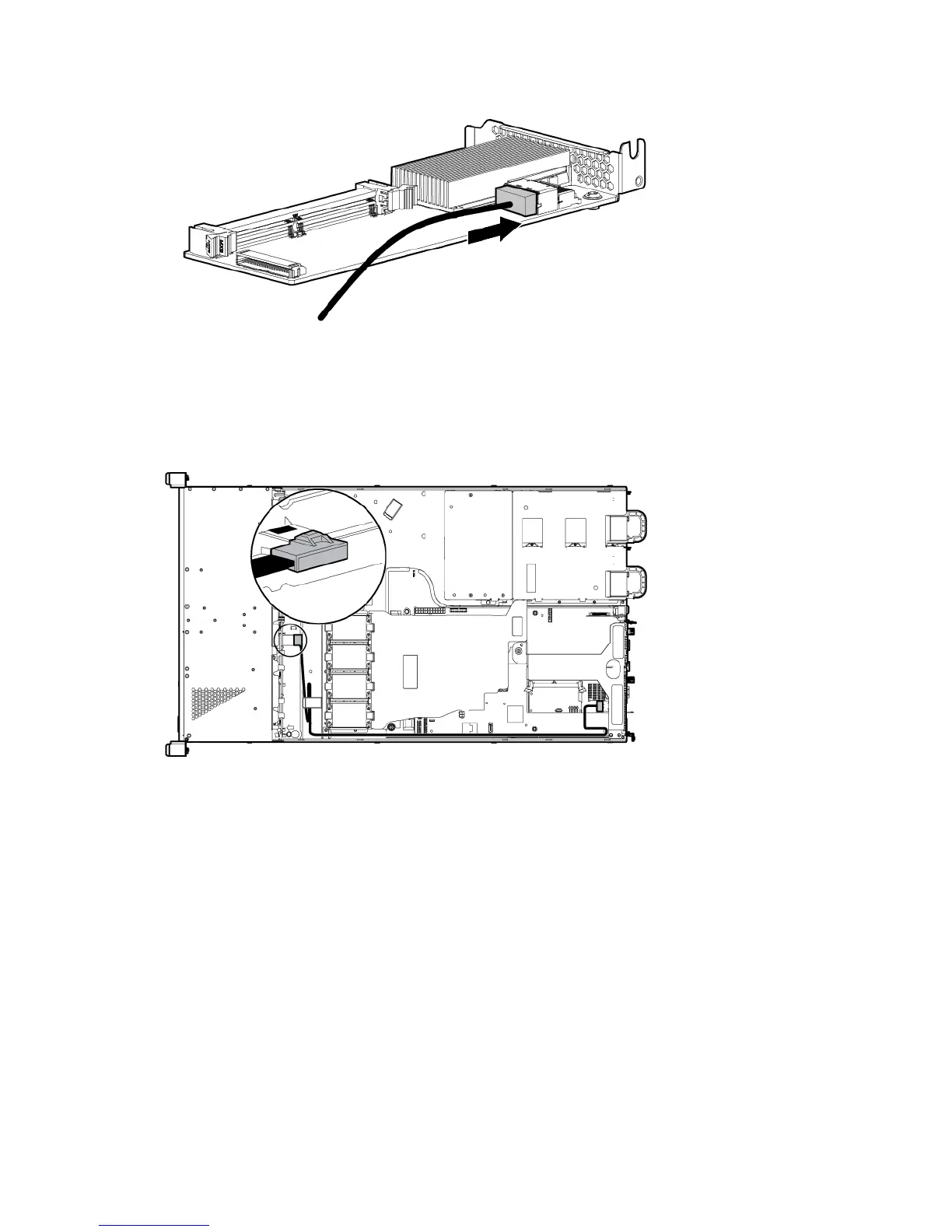

Connect the Mini-SAS cable to the storage controller.
7. Install the storage controller ("Installing a storage controller" on page 37).
8. Route the Mini-SAS cable along the side of the system board towards the front chassis, and then connect
the cable to the drive backplane:
o Full-height controller connection
