HP ProLiant DL320e - System Board Components

Component identification 10

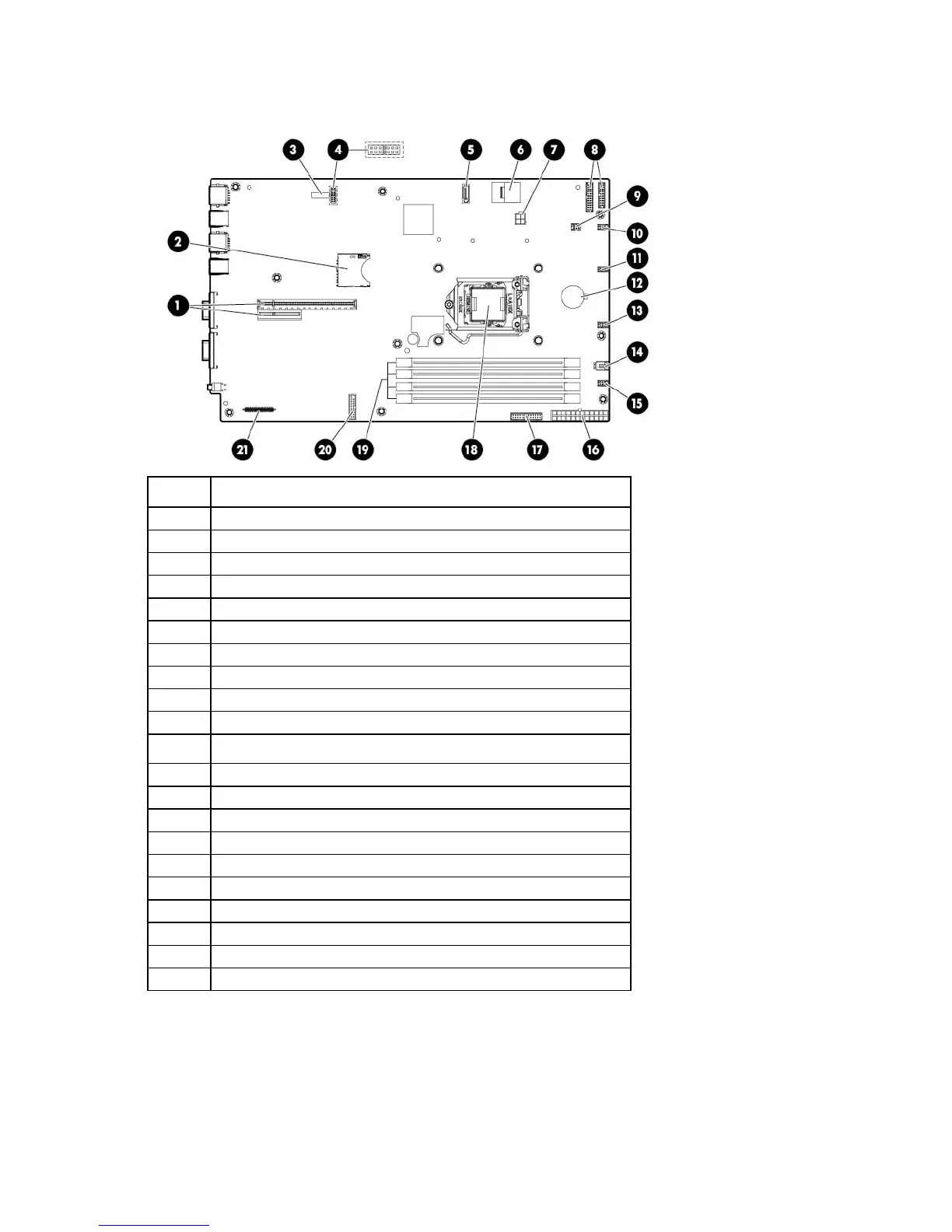

System board components
Item Description
1
PCI riser connectors*
2
SD card slot
3
System maintenance switch
4
NMI header
5
SATA connector
6
Mini-SAS connector
7
4-pin power supply connector
8
Front panel connectors
9
Internal USB connector
10
Fan connector 4
11
Fan connector 3
12
System battery
13
Fan connector 2
14
Discovery service connector
15
Fan connector 1
16
24-pin power supply connector
17
26-pin RPS connector
18
Processor socket
19
DIMM slots
20
TPM connector
21
Dedicated iLO module connector
* For more information on the riser board slots supported by the onboard PCI riser connectors, see "PCIe riser
board slot definitions (on page 11)."
