HP ProLiant DL320e - Drive Numbering; Drive LED Definitions

Component identification 13
Item Description Status
2
Power supply 1 failure Red = Power supply failure
Off = Normal
3
Power supply 2 failure Red = Power supply failure
Off = Normal
4
Auxiliary power Green = Standby power indicator
Off = Standby power invalid
5
Processor error Yellow = Critical processor error
Off = Normal

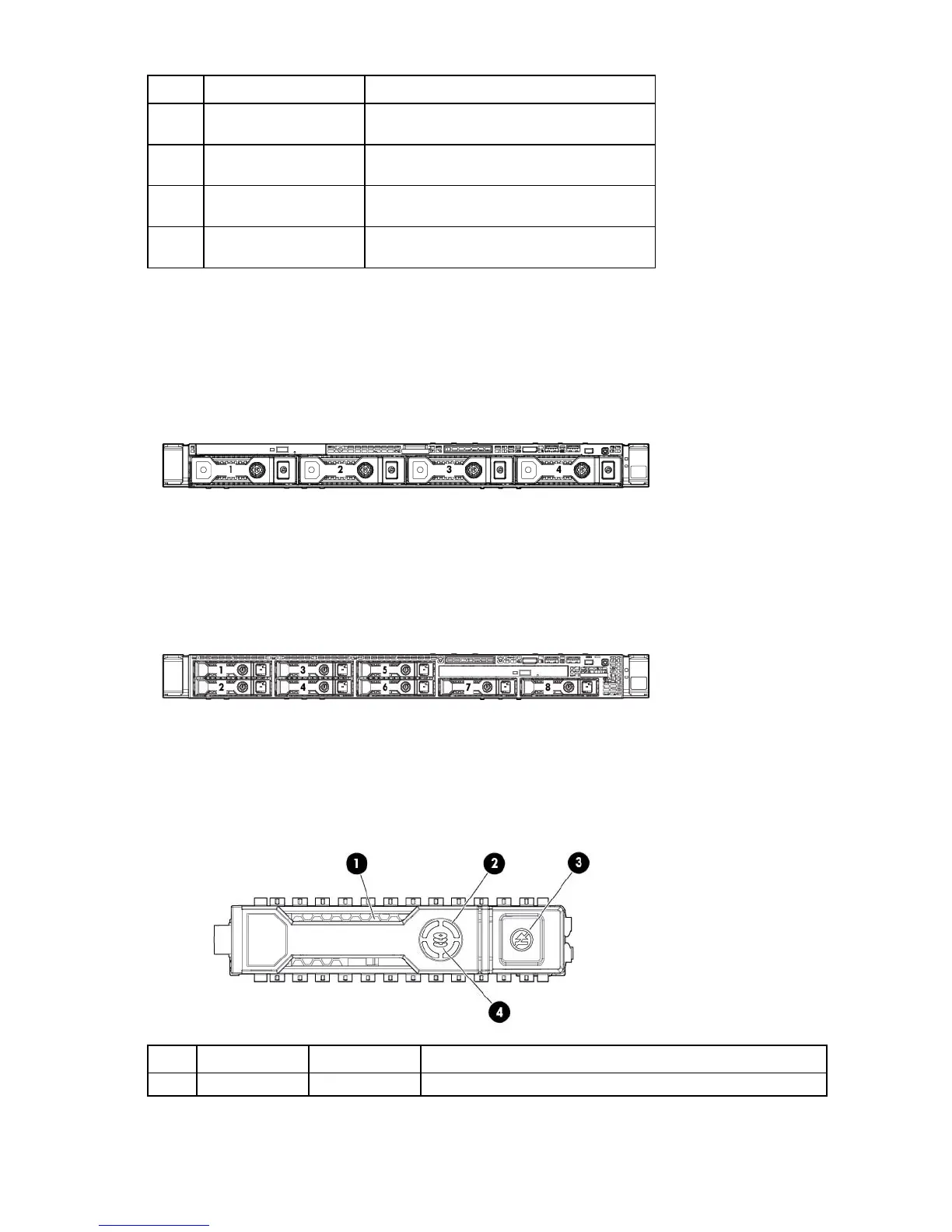

Drive numbering
• Four-bay LFF drive model
• Eight-bay SFF drive model
Drive LED definitions
Item LED Status Definition
1
Locate Solid blue The drive is being identified by a host application.
