Component identification 8

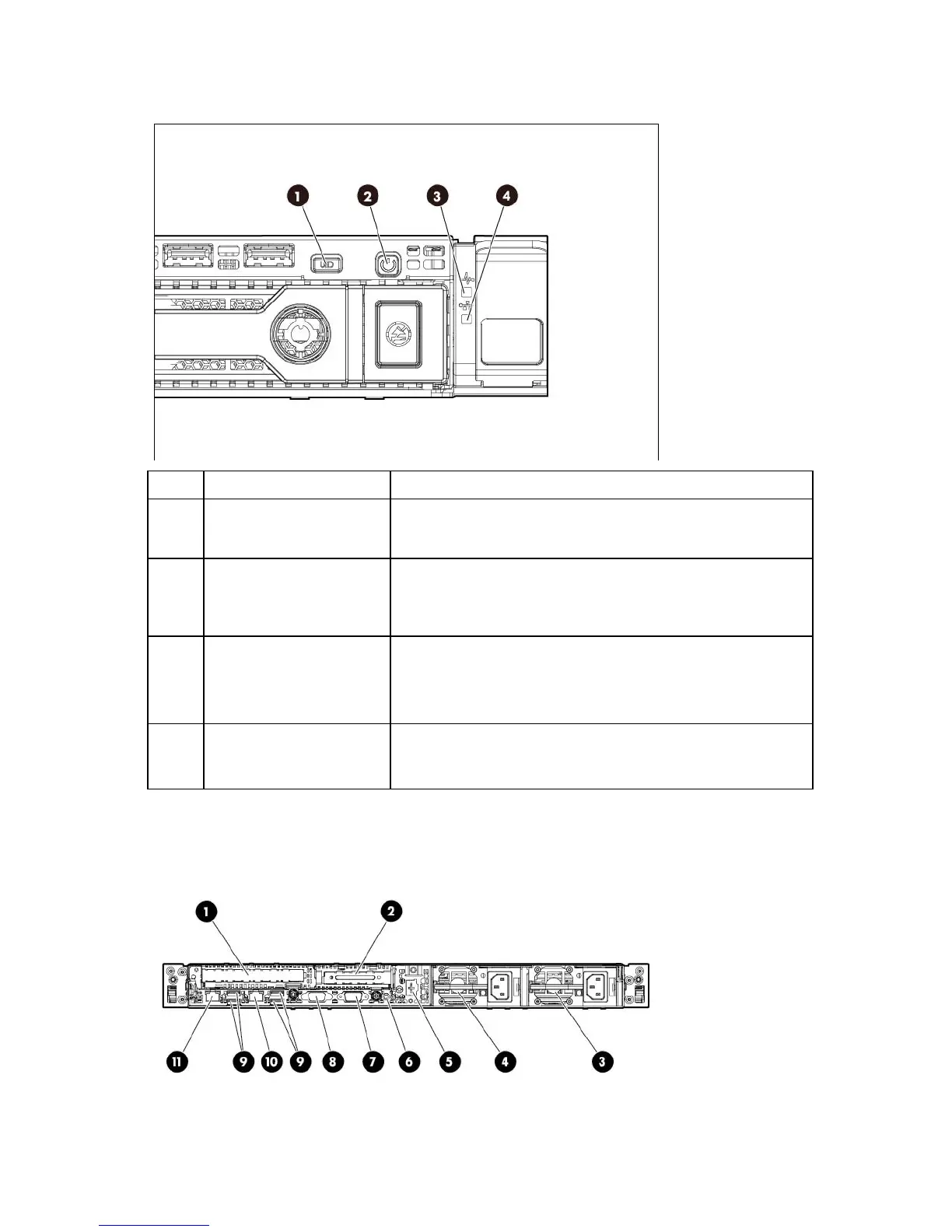

Front panel LEDs and buttons
Item Description Status
1
UID LED/button Blue = Identification is activated.
Flashing blue = System is being managed remotely.
Off = Identification is deactivated.
2
Power On/Standby button
and system power LED
Green = System is on.
Flashing green = Waiting for power.
Amber = System is in standby, but power is still applied.
Off = Power cord is not attached or power supply failed.
3
Health LED Green = System is on and system health is normal.
Flashing amber = System health is degraded.
Flashing red = System health is critical.
Off = System is off.
4
NIC status LED Green = Linked to network
Flashing green = Network activity
Off = No network link
