Component identification 10

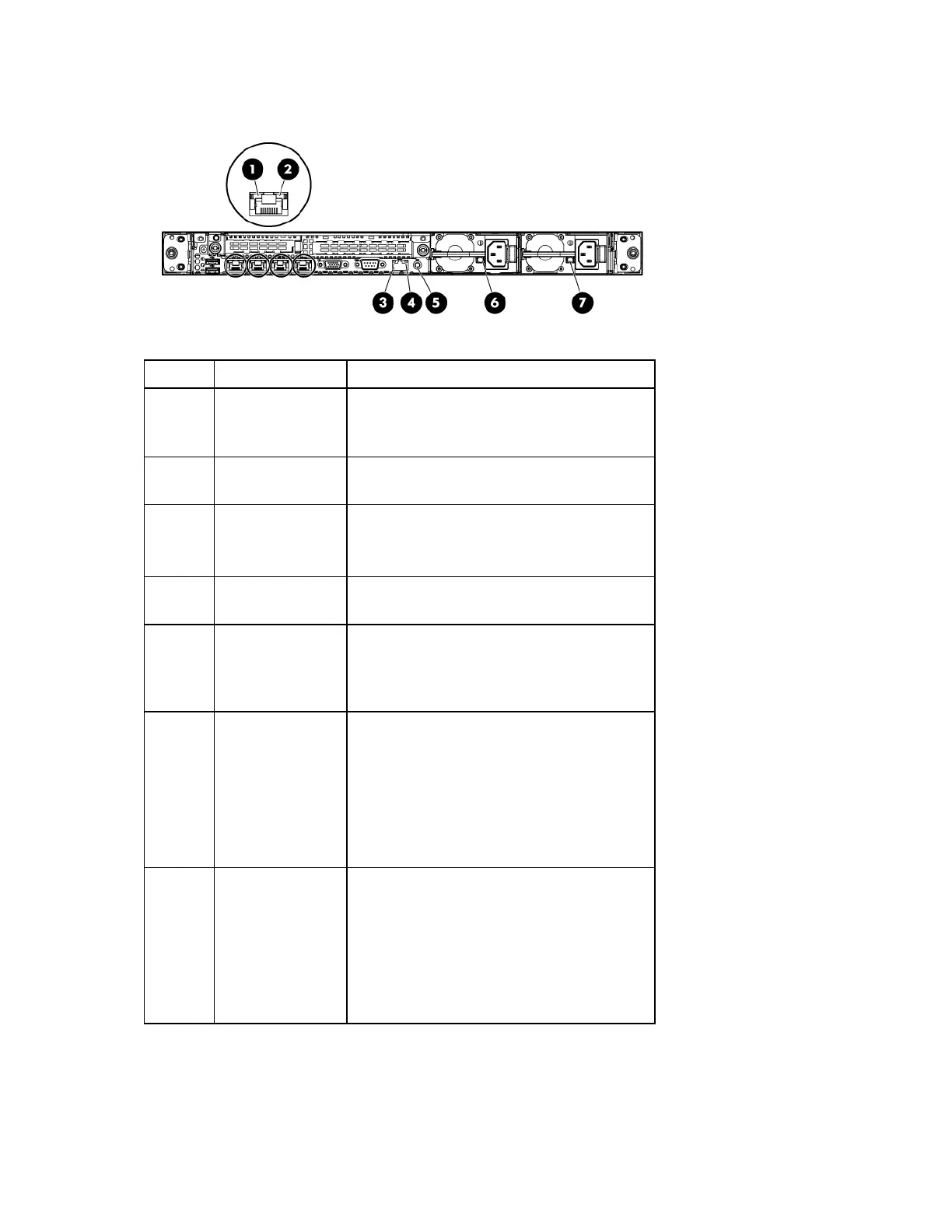

Rear panel LEDs and buttons
Item Description Status
1 10/100/1000
NIC activity LED
Green = Activity exists.
Flashing green = Activity exists.
Off = No activity exists.
2 10/100/1000
NIC link LED
Green = Link exists.
Off = No link exists.
3
iLO 3 NIC activity
LED
Green = Activity exists.
Flashing green = Activity exists.
Off = No activity exists.
4 iLO 3 NIC link LED Green = Link exists.
Off = No link exists.
5 UID button/LED Blue = Identification is activated.
Flashing blue = System is being managed
remotely.
Off = Identification is deactivated.
6
Power supply 2
LED
Green = Normal
Off = One or more of the following conditions
exists:
AC power unavailable
Power supply failed
Power supply in standby mode
Power supply exceeded current limit
7
Power supply 1
LED
Green = Normal
Off = One or more of the following conditions
exists:
AC power unavailable
Power supply failed
Power supply in standby mode
Power supply exceeded current limit
