Component identification 8

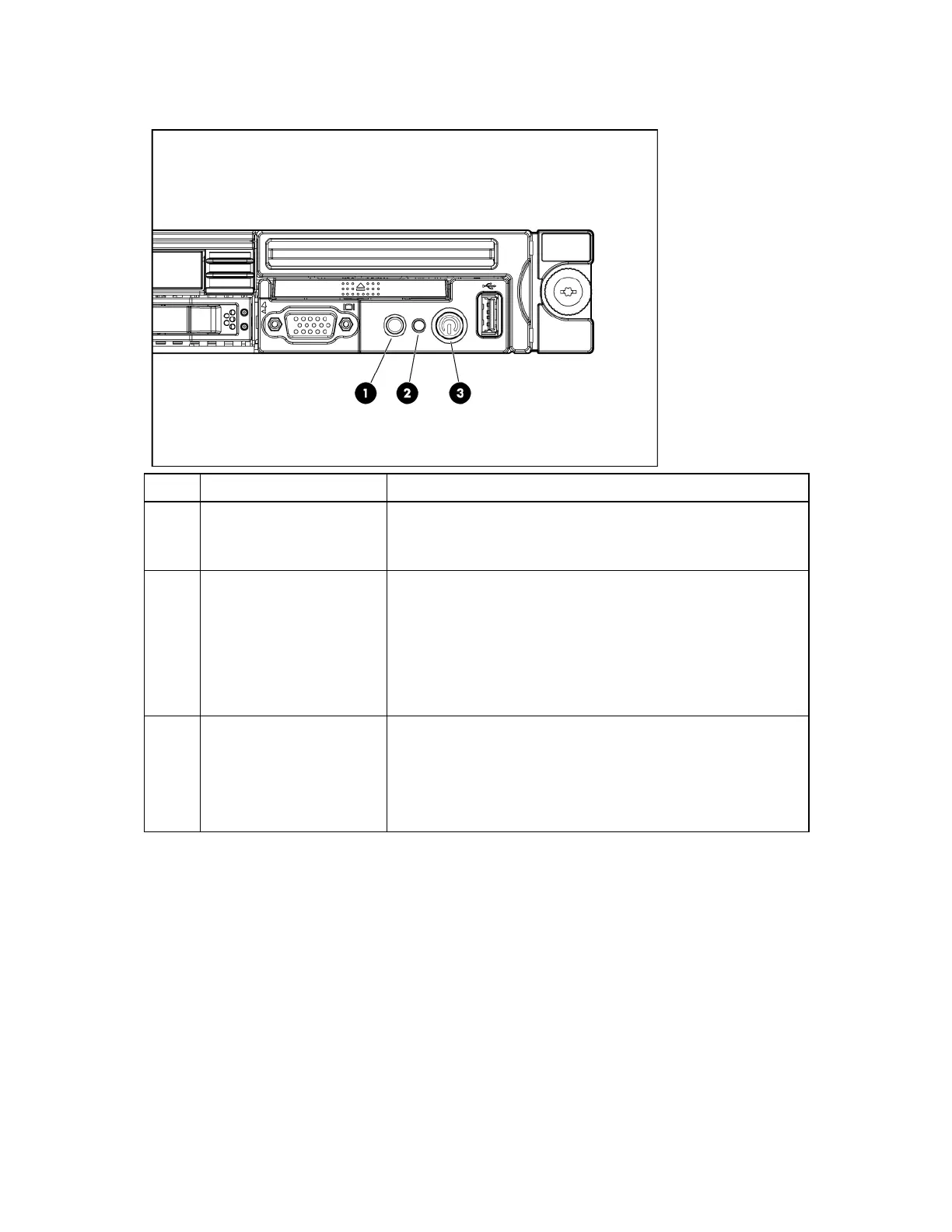

Front panel LEDs and buttons
Item Description Status
1 UID LED/button Blue = Identification is activated.
Flashing blue = System is being managed remotely.
Off = Identification is deactivated.
2 Health LED Green = System health is normal.
Amber = System health is degraded. To identify the component in
a degraded state, see "Systems Insight Display LEDs (on page
13)".
Red = System health is critical. To identify the component in a
critical state, see "Systems Insight Display LEDs (on page 13)".
Off = System health is normal (when in standby mode).
3
Power On/Standby button
and system power LED
Green = System is on.
Amber = System is in standby, but power is still applied.
Off = Power cord is not attached, power supply failure has
occurred, no power supplies are installed, facility power is not
available, or the power button cable is disconnected.
