Component identification 13
IMPORTANT: If more than one DIMM slot LED is illuminated, further troubleshooting is required.
Test each bank of DIMMs by removing all other DIMMs. Isolate the failed DIMM by replacing
each DIMM in a bank with a known working DIMM.

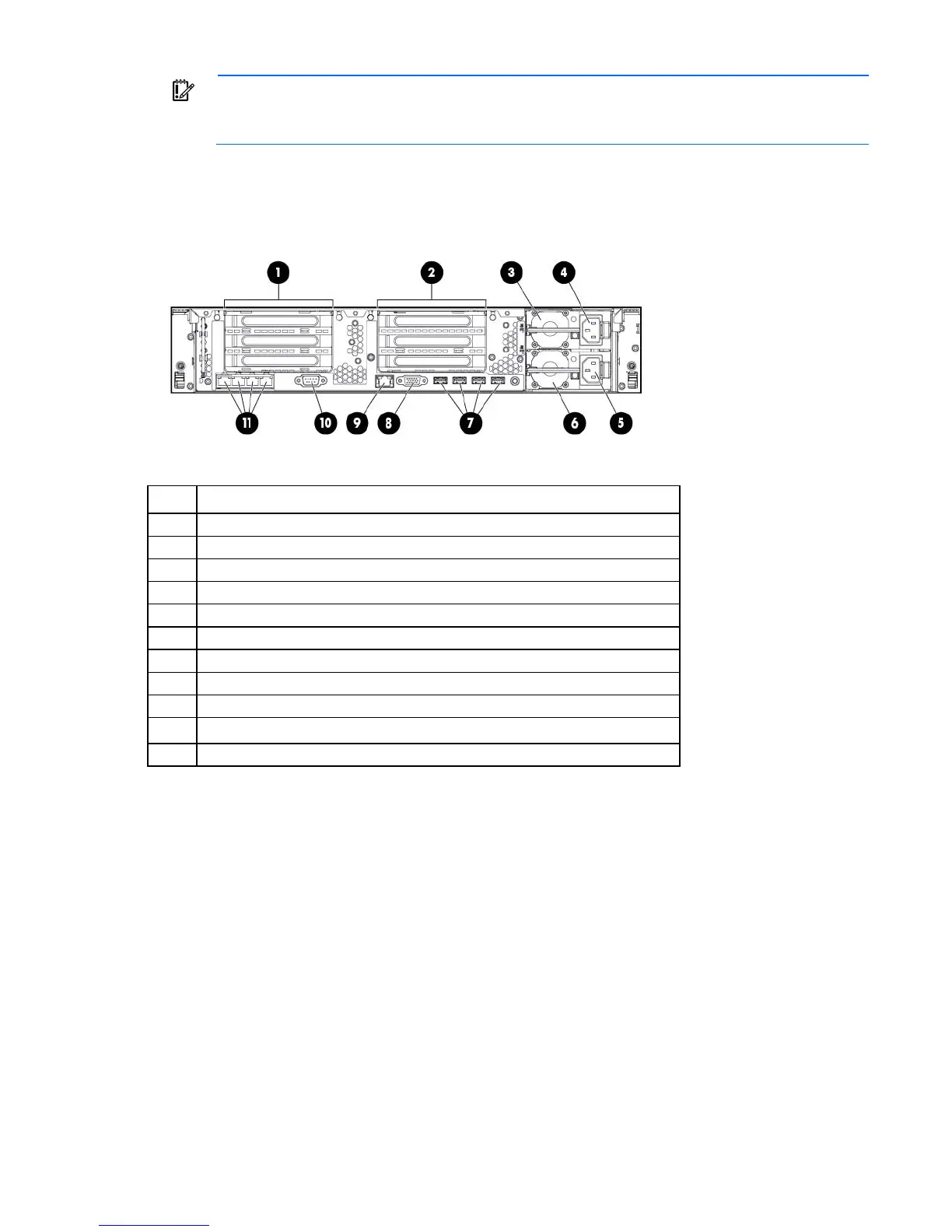

Rear panel components
Item Description
1
PCIe slots 1–3 (top to bottom)
2
PCIe slots 4–6 (top to bottom)
3
Power supply 1 (PS1)
4
PS1 power connector
5
PS2 power connector
6
Power supply 2 (PS2)
7
USB connectors (4)
8
Video connector
9
iLO connector
10
Serial connector
11
FlexibleLOM ports (Shown: 4x1Gb/Optional: 2x10Gb); port 1 on right side
