Component identification 18

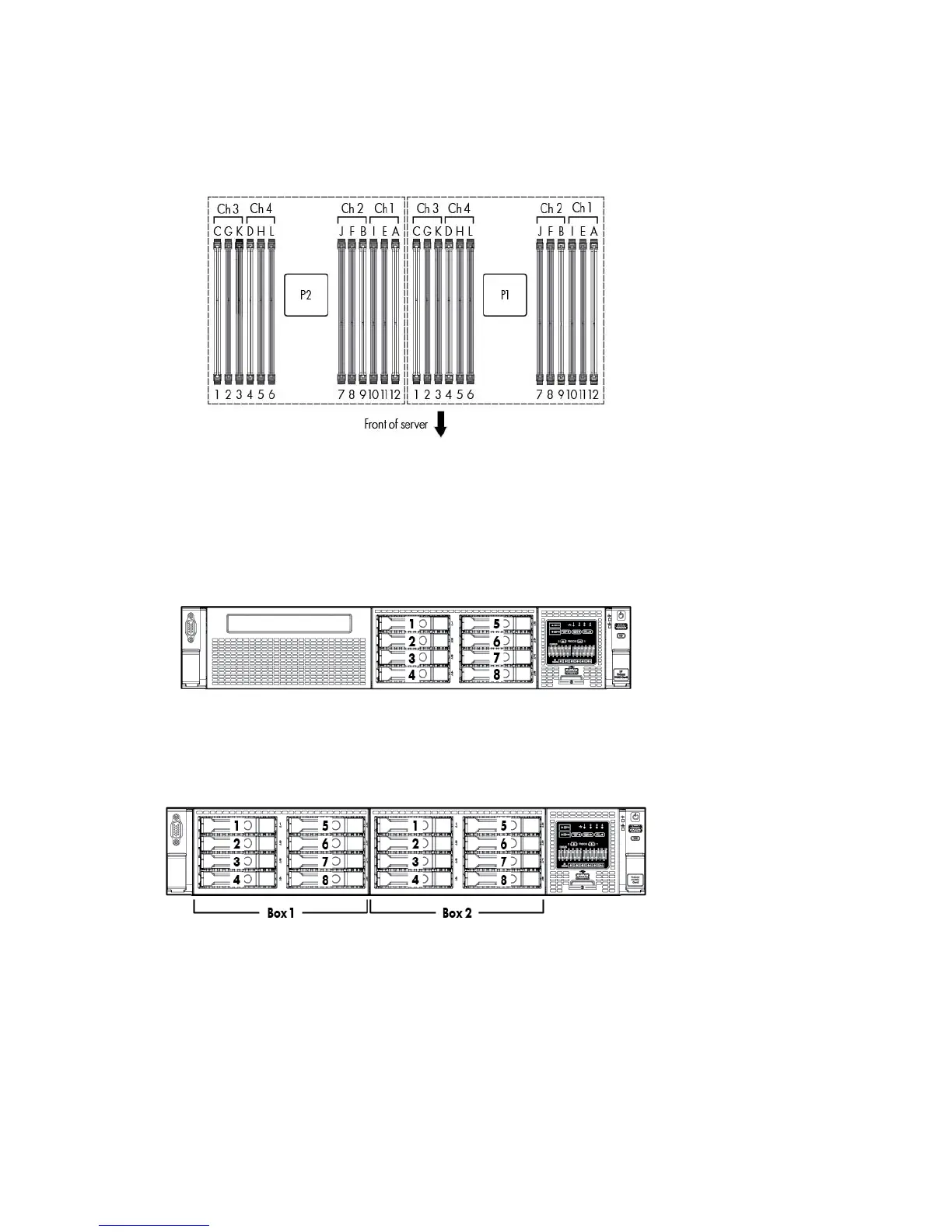

DIMM slot locations
DIMM slots are numbered sequentially (1 through 12) for each processor. The supported AMP modes use the
letter assignments for population guidelines.
SAS and SATA device numbers
• SFF 8-device bay numbering
• Optional SFF 16-device bay numbering
• SFF 25-device bay numbering
